Single Mode Fiber Coupled Laser(1570nm)

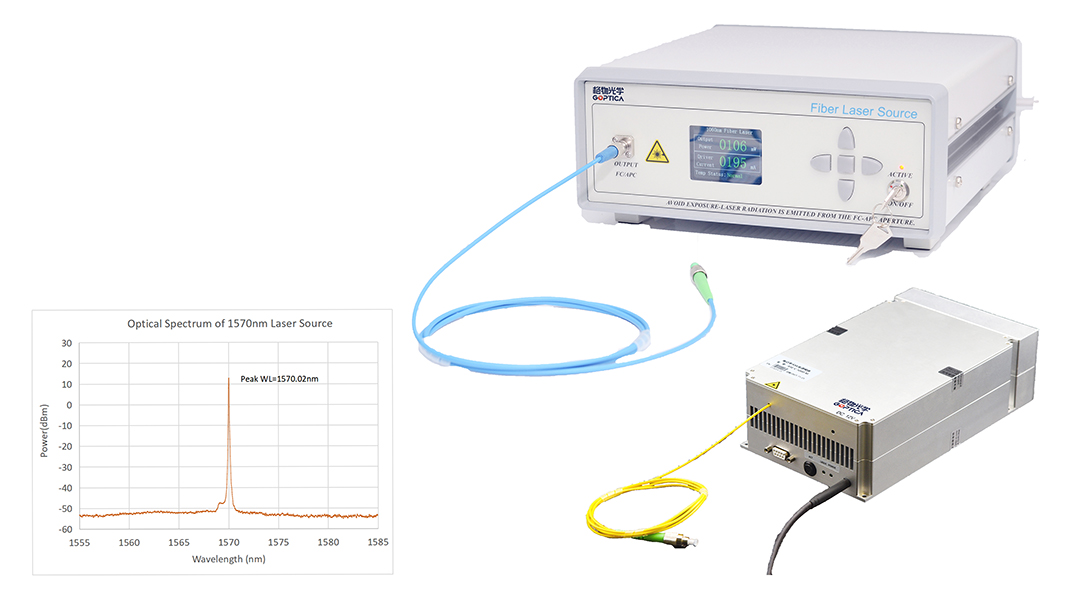

  •    格物10高功率单模光纤耦合激光器-1

    The 1570nm laser is equipped with high-performance butterfly shaped semiconductor laser chips, and a professionally designed driver and temperature control circuit ensures the safe operation of the laser, as well as

    stable output power and spectrum. It is suitable as a pump laser source for thulium doped fiber lasers or fiber amplifiers, and can be provided in basic or module packaging.


    Product Brochure产品手册.png



                                                 Characteristic


                                                 · 10mW~10W multiple power

                                                 · Single-mode fiber output

                                                 · A variety of spectra are available




    Apply


    · A variety of spectra are available

    · Fiber lasers

    · Optical device testing





    Product parameters

       Optical indicators

    unit

    TypicalRemark

     Operating wavelength

    nm

    1570±1

     Wavelength accuracy

    nm

    ±0.5

     Spectral linewidth

    nm

    < 0.1

     Edge die suppression ratio

    dB

    ≥50

     Working mode

    -

    CWContinuous light

      Output power

    mW

    10/20/50/100/200/400/500 Low-power models

    dBM

    30/33/35/37/40 High-power models

      Short-term stability (15 minutes)

    dB

    ≤ ±0.02Equivalent ≤± 0.5%.
      Long-term stability (8 hours)dB≤ ±0.05Equivalent ≤± 1.2%.
      Polarization state- random Linear polarization
      Pigtail type-SMF-28PM1550
      Pigtail joint type
    FC/APCFC/APC (Slow Axis Alignment). *Connectors are used for power testing


      Electrical and environmental parameters

    Desktopmodule

     Control mode

    Button/RS232 serial communicationRS232 serial communication

      Communication interfaces

    DB9 FemaleDB9 Female

      Electricity

    100~240V AC, <150W5V DC, <60W

      Size (mm).

    260(W)×320(D)×120(H)139(W)x235(D)x70(H)

      Operating temperature range

    -5~+35°

      Operating humidity range

    0~70%


    订购信息  Ordering Information


    Operating wavelength (nm)

    Output power

    Output pigtail type


    Form factor

    FL157010/20/50/100/200/400/500 (mW)


    SM= SMF-28

    PM=PM1550


    B=台式  B = Tabletop

    M=模块  M = module

    FLH30/33/35/37/40 (dBm)
