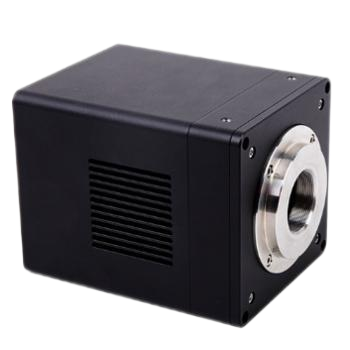

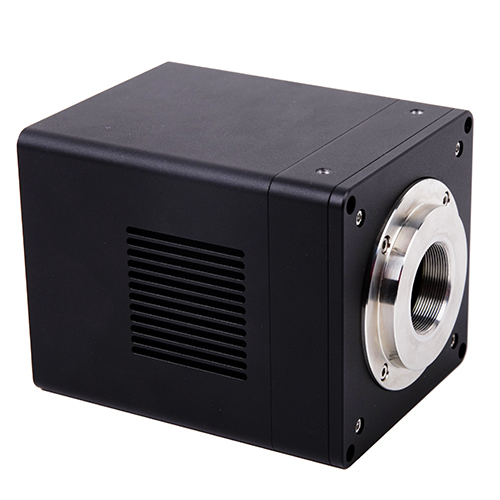

Product manual：

Product Features

· Scientific grade professional camera based on SONY Exmor CMOS sensor

· A high-performance TE cooling structure designed by dual level professionals, with a flexible structure and fast heat dissipation speed. The temperature can be controlled arbitrarily,

  Temperature drop up to 40 degrees Celsius

· Exquisite anti fogging structure ensures that the sensor surface will not fog under ultra-low temperature conditions

·IR-CUT dual AR film protective glass (optional)

· High speed USB 3.0 interface, with a transfer speed of up to 5Gbits/s

· Supports precise exposure control technology for up to 1 hour

· High dynamic range, with some reaching 16 bits

· Support video and software/hardware trigger modes to capture single or multiple frames of images

· Ultra Fine color processing engine, achieving perfect color reproduction capability

·Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK

Application

· Bright field microscope; Dark field, differential interference (DIC) microscope

· Live cell imaging, cellular or tissue pathology testing, cytology

· Defect analysis, semiconductor testing, precision measurement

· Low light fluorescence imaging, GFP or RFP analysis, fluorescence in situ hybridization (FISH)

· Fluorescence resonance energy transfer microscope, total internal reflection fluorescence microscope, real-time confocal microscope, failure analysis, astrophotography;

MTR3CMOS45000KMA

MTRM145000A

45M/IMX492(M, RS)

4/3”(19.11x13.00)

2.315 x 2.315

351mV with 1/30s

0.12mV with 1/30s

8.1@8176x5616

30.0@4080x2808

8.1@7408x5556

33.0@3696x2778

10.4@8176x4320

34.7@4096x2160

62.5@2048x1080

86.5@1360x720

8 Bit / 12 Bit

1x1(3:2)

2x2(3:2)

1x1(4:3)

2x2(4:3)

1x1(17:9)

2x2(17:9)

3x3(17:9)

4x4(17:9)

0.1ms~1h

MTR3CMOS26000KPA

MTRP126000A

26M/IMX571(C, RS)

1.8”(23.48x15.67)

3.76 x 3.76

485mv with 1/30s

0.07mv with 1/30s

14@6224x4168

37@3104x2084

110@2064x1386

8 Bit / 16 Bit

1x1

2x2

3x3

0.1ms~1h

MTR3CMOS26000KMA

MTRM126000A

26M/IMX571(M, RS)

1.8 “(23.48x15.67)

APS-C

3.76 x 3.76

871mv with 1/30s

0.07mv with 1/30s

14@6224x4168

37@3104x2084

110@2064x1386

8 Bit / 16 Bit

1x1

2x2

3x3

0.1ms~1h

MTR3CMOS21000KPA

MTRP121000A

21M/IMX269(C)

4/3”(17.4x13.1)

3.3 x 3.3

400mv with 1/30s

0.1mv with 1/30s

17@5280x3954

17@3952x3952

56@2640x1976

67@1760x1316

192@584x438

8 Bit / 12 Bi

1x1

1x1

2x2

3x3

9x9

0.1ms~1h

MTR3CMOS20000KPA

MTRP120000A

20M/IMX183(C, RS)

1 “(13.056x8.755)

2.4 x 2.4

462mv with 1/30s

0.21mv with 1/30s

19.0@5440x3648

48.8@2736x1824

59.4@1824x1216

8 Bit / 12 Bit

1x1

2x2

3x3

0.1ms~1h

MTR3CMOS20000KMA

MTRM120000A

20M/IMX183(M, RS)

1 “(13.056x8.755)

2.4 x 2.4

388mv with 1/30s

0.21mv with 1/30s

(F8.0)

19.0@5440x3648

48.8@2736x1824

59.4@1824x1216

8 Bit / 12 Bit

1x1

2x2

3x3

0.1ms~1h

MTR3CMOS16000KPA

MTRP116000A

16M/MN34230PLJ(C)

4/3“ (17.6x13.3)

3.8 x 3.8

2413LSB

89.1LSB

(Gain = 0dB)

6@4640x3506

20@2304x1750

48.0@1536x1160

8 Bit / 12 Bit

1x1

2x2

3x3

0.15ms~1h

MTR3CMOS16000KMA

MTRM116000A

16M/MN34230ALJ(M)

4/3“ (17.6x13.3)

3.8 x 3.8

2650LSB

89.1LSB

(Gain = 0dB)

22.5@4648x3506

43.0@2304x1750

48.0@1536x1168

8 Bit / 12 Bit

1x1

2x2

3x3

0.15ms~1h

MTR3CMOS10300KPA

MTRP110300A

10.3M/IMX294(C)

4/3 “(19.11x13.0)

4.63 x 4.63

419mv with 1/30s

0.12mv with 1/30s

30.0@4128x2808

38.5 @4096x2160

59.8@2048x1080

87.2@1360x720

8 Bit / 14 Bit

1x1

1x1

2x2

3x3

0.15ms~1h

MTR3CMOS10300KMA

MTRM110300A

10.3M/IMX492(M, RS)

4/3 “(19.11x13.0)

4.63 x 4.63

701mv with 1/30s

0.12mv with 1/30s

30.0@4128*2808

38.5@ 4096*2160

59.8@2048*1080

87.2@1360*720

8 Bit / 14 Bit

1x1

1x1

2x2

3x3

0.15ms~1h

MTR3CMOS09000KPA

MTRP109000A

9M/IMX533(C)

1”(11.28x11.28)

3.76 x 3.76

534mv with 1/30s

0.04mv with 1/30s

40@2992x3000

62@1488x1500

186@992x998

8 Bit / 14 Bit

1x1

2x2

3x3

0.1ms~1h

MTR3CMOS09000KMA

MTRM109000A(2023,New）

9M/IMX533(M)

1”(11.28x11.28)

3.76 x 3.76

877mv with 1/30s

0.04mv with 1/30s

40@2992x3000

62@1488x1500

186@992x998

8 Bit / 14 Bit

1x1

2x2

3x3

0.1ms~1h

MTR3CMOS08300KPA

MTRP108300A

8.3M/IMX585(C, RS)

1/1.2”(11.14x6.26)

2.9 x 2.9

5970mv with 1/30s

0.15mv with 1/30s

45@3840x2160

70@1920x1080

8 Bit / 12 Bit

1x1

2x2

0.1ms~1h

MTR3CMOS07100KPA

MTRP107100A

7.0M/IMX428(C,GS)

1.1 “(14.4x9.9)

4.5 x 4.5

2058mv with 1/30s

0.15mv with 1/30s

51.3@3200x2200

133.8@1584x1100

8 Bit / 12 Bit

1x1

1x1

0.1ms~1h

MTR3CMOS07100KMA

MTRM107100A

7.0M/IMX428(M,GS)

1.1 “(14.4x9.9)

4.5 x 4.5

3354mv with 1/30s

0.15mv with 1/30s

51.3@3200x2200

133.8@1584x1100

8 Bit / 12 Bit

1x1

1x1

0.1ms~1h

MTR3CMOS02300KPA

MTRP102300A

20231030

2.3M/SC2110(C,RS)

1.69“(23.0x14.4)

12 x 12

120000 mV/lux·s @HCG

120@1920x1200

8 Bit / 12 Bit

1x1

0.1ms~1h

MTR3CMOS02300KMA

MTRM102300A

20231030

2.3M/SC2110(M,RS)

1.69“(23.0x14.4)

12x12

120000 mV/lux·s @HCG

120@1920x1200

8 Bit / 12 Bit

1x1

0.1ms~1h

MTR3CMOS01700KPA

MTRP101700A

1.7M/IMX432(C,GS)

1.1 “(14.4x9.9)

9.0 x 9.0

4910mv with 1/30s

0.3mv with 1/30s

98.6@1600x1100

8 Bit / 12 Bit

1x1

0.1ms~1h

MTR3CMOS01700KMA

MTRM101700A

1.7M/IMX432(M,GS)

1.1 “(14.4x9.9)

9.0 x 9.0

8100mv with 1/30s

0.3mv with 1/30s

98.6@1600x1100

8 Bit / 12 Bit

1x1

0.1ms~1h

MTR3CMOS01300KMA

MTRM101300A

1.3M/GLUX9701BSI(M,UV,RS)

1 “(12.493x9.994)

9.76 x 9.76

2.57x108(e-/((W/m2).s))

QE89%@610nm

0.08(e-/s/pix) @-28C

30fps@1280×1024

30fps@640×512

8 Bit / HDR 16 Bit

1x1

2x2

0.1ms~1h

MTR3CMOS00500KMA

MTRM100500A

0.5M/GLUX1605BSI(M,UV,RS)

1 “(12.8x9.6)

16.0 x 16.0

6.4x108e-/((W/m2).s))

QE91%@550nm

50(e-/s/pix)

60.0@800x600

60.0@400x300

8 Bit / HDR 16 Bit

1x1

2x2

0.1ms~1h

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

ROI white balance/manual Temp-Tint adjustment/black and white camera not provided

Color restoration technology

Ultra-Fine Color Processing Engine

Capture/Control SDK

Native C/C++, C#, DirectShow, Twain and Labview

Recording method

Images and videos (triggered by software or hardware)

Cooling method*

Double stage circulating thermoelectric refrigeration system, below ambient temperature of 42 degrees Celsius, precise and controllable (slightly different depending on sensor model)

Camera working environment

Working temperature (Celsius)

-10~ 50

Storage temperature (Celsius)

-20~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through the USB 3.0 interface (compatible with USB 2.0)

The refrigeration module is powered by an external power source, DC12V，3A

Software operating environment

Operating system

Microsoft® Windows®XP/ Vista / 7 / 8 /10 /11(32 & 64 bit)

OS X (Mac OS X)

Linux

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 3.0 high-speed interface, compatible with USB 2.0 interface

Monitor: 17 "or above

CD-ROM

Schematic diagram of the external dimensions of MTR3CMOS series cameras. The camera housing is made of hard aluminum alloy through CNC precision machining. The front end of the camera sensor is equipped with high-quality IR-CUT or double-sided AR protective glass, which mainly filters out infrared light waves in imaging and protects the camera sensor.

Compared to other brands of cameras, the TE cooled camera from Gewu Optics has good sealing performance. After the cooling fan of the camera is dampened, there will be no image blur caused by fan shaking.

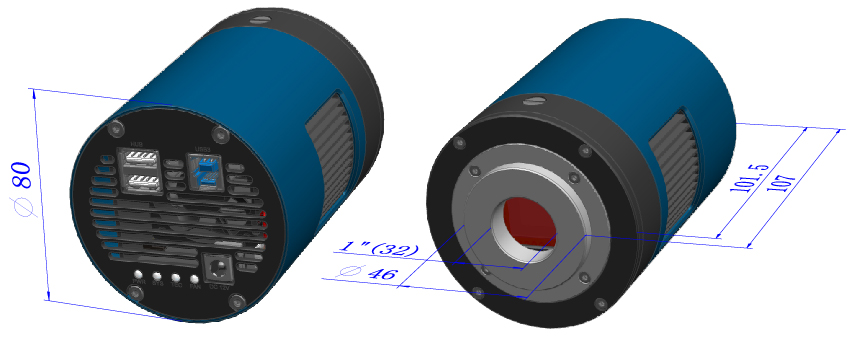

Outline Dimensional Diagram of MTR3CMOS Series Camera (Circular)

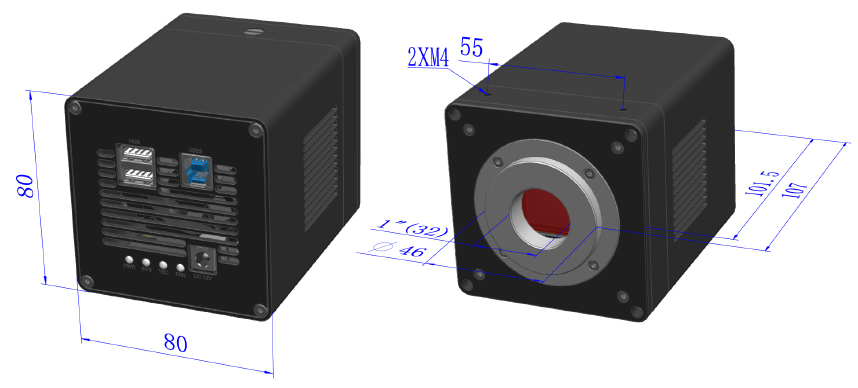

Outline Dimensional Diagram of MTR3CMOS Series Camera (Square)

MTR3CMOS series camera packing list (circular)

MTR3CMOS series camera packing list (square)

A

Packaging box specifications L: 50cm W: 30cm H: 30cm (20pcs, 12-17Kg/carton), not shown in the figure here

B

3-A instrument safety box: L: 28cm W: 23.0cm H: 15.5cm (1pcs, 2.8Kg/box); Outer packaging carton size: L:28.2cm W:25.2cm H:16.7cm

C

One MTR3CMOS series camera

D

Drying tube

E

Power adapter: Input: AC 100~240V 50Hz/60Hz， Output: DC 12V 3A

F

High speed USB 3.0 A to B gold-plated head data cable/1.5m

G

CD（driver and application software, Ø 12cm）

Optional Accessories

H

Adjustable focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

108004/AMA100

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

108011/ATA100

I

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

108008/FMA100

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108011/FTA037

108012/FTA050

108013/FTA075

108014/FTA100

Attention: For the G and H options, please first confirm your camera model (C interface, microscope camera or telescope camera),

Engineers from Goptica Optics will assist you in selecting the appropriate microscope or telescope adapter based on your application;

J

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

K

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

L

Micrometer

106011/TS-M1(X=0.01mm/100Div.)

106012/TS-M2(X,Y=0.01mm/100Div.)

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

Machine vision; Medical imaging;

Semiconductor equipment; Testing instruments;

Document scanner; 2D code scanner;

Web camera or video surveillance;

Microscopic imaging；
