Product manual：

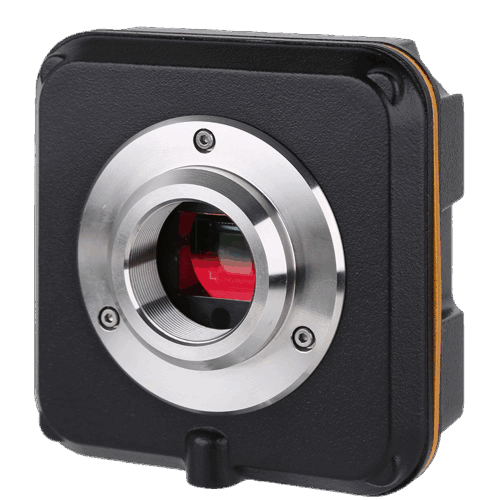

Product Features

· C-interface CMOS camera using Aptina CMOS sensor

· Integrated large capacity storage chip on board to ensure synchronous data transmission, high frame rate, and stability

· Efficient heat dissipation structure ensures low-noise images

· USB 3.0 interface ensures high transfer rate

· Ultra Fine color engine ensures precise color reproduction

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· 提供Windows/Linux/macOS/Android multi platform standard SD

L3CMOS14000KPA

LP114000A

14M/MT9F002(C)

1/2.3“(5.73x4.60)

1.4x1.4

0.724v/lux-sec

65.3dB

35.5dB

6.2@4096x3286

20.8@2048x1644

53.3@1024x822

1x1

2x2

4x4

0.1ms~2000ms

L3CMOS12000KPA

LP112000A(2022)

12M/IMX577(C)

1/2.1“ (5.95x4.71)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

8.5@3840x3040

49@1920x1516

137@960x758

1x1

2x2

4x4

0.1ms~2000ms

L3CMOS10000KPA

LP110000A(2022)

10M/IMX577(C)

1/2.3“ (5.68x4.26)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

8.5@3664x2748

49@1832x1374

137@912x686

1x1

2x2

4x4

0.1ms~2000ms

L3CMOS08500KPA

LP108500A(2022)

8.5M/Special(C)

1/2.4“(5.16x3.95)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

10@3328x2548

56@1664x1272

1x1

2x2

0.1ms~2000ms

L3CMOS05100KPA

LP105100A(2022)

5.1M/AR0521(C)

1/2.5“ (5.70x4.28)

2.2x2.2

18.8ke-/lux

73dB

40dB

15.5@2592x1944

49.5@1296x972

97.5@648x486

1x1

2x2

4x4

0.1ms~2000ms

L3CMOS03100KPA

LP103100A

3.1M/AR0330(C)

1/3“ (4.51x3.37)

2.2x2.2

1.9v/lux-sec

100dB

39dB

27.3@2048x1534

53.3@1024x770

1x1

2x2

0.1ms~2000ms

L3CMOS10000KPA

LP110000A

10M/MT9J003(C)

1/2.3“ (5.98x4.58)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

7.2@3584x2746

24.5@1792x1372

1x1

2x2

4x4

0.1ms~2000ms

L3CMOS08500KPA

LP108500A

8.5M/Special(C)

1/2.4“(5.56x4.26)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

8.3@3328x2548

26.2@1664x1272

1x1

2x2

4x4

0.1ms~2000ms

L3CMOS05100KPA

LP105100A

5.1M/MT9P006(C)

1/2.5“ (5.63x4.23)

2.2x2.2

1.76v/lux-sec

67.74dB

38.5dB

14.2@2560x1922

38.3@1280x960

101.2@640x480

1x1

2x2

4x4

0.05ms~2000ms

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

ROI white balance/manual Temp-Tint adjustment

Color restoration technology

Ultra-Fine Color Processing Engine

Capture and Control API

Windows/Linux/macOS/Android Multi Platform SDK

（Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain etc.）

Depth of Position

8 Bit

Recording method

Images and videos

Cooling method*

Natural cooling

Camera working environment

Working temperature (Celsius)

-10 ~ 50

Storage temperature (Celsius)

-20 ~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through a USB interface

Software operating environment

Operating system

Microsoft® Windows®XP/ Vista / 7 / 8 /10 /11(32 & 64 bit)

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 3.0 high-speed interface

Monitor: 17 "or above

CD-ROM

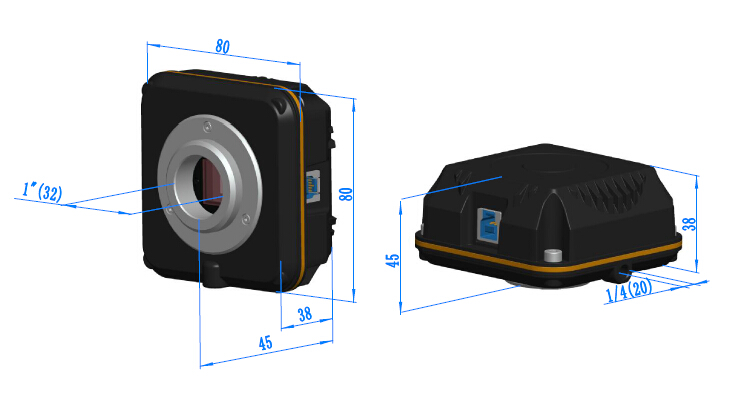

Schematic diagram of the external dimensions of L3CMOS series cameras. The camera housing is machined from a sturdy aluminum alloy to ensure impact under heavy loads. The front end of the camera sensor is equipped with high-quality IR-CUT, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.

Outline dimension diagram of L3CMOS series camera

A

Packaging box specifications: L: 40cm W: 36cm H: 36cm (16pcs, 12-17Kg/carton), not shown in the above picture

B

Packaging box specifications: L:16.4cm W:16.4cm H:9.6cm (0.72~0.8Kg/ box)

C

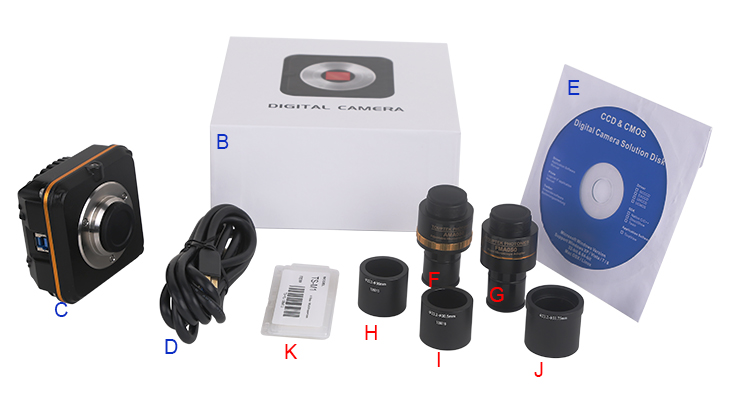

One L3CMOS series camera

D

High speed USB 3.0 A to B gold-plated head data cable/2.0m

E

CD (driver and application software, Ø 12cm)

Optional Accessories

F

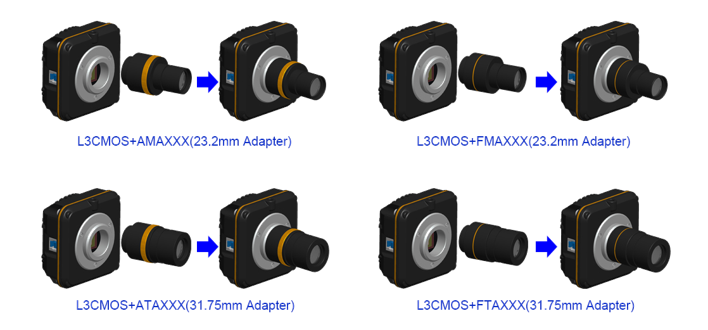

Adjustable focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

G

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108011/FTA037

108012/FTA050

108013/FTA075

Attention: For options F and G, please first confirm your camera model (C interface, microscope camera or telescope camera),

Engineers from Goptica Optics will assist you in selecting the appropriate microscope or telescope adapter based on your application;

H

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

I

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

J

108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube

K

Micrometer

106011/TS-M1(X=0.01mm/100Div.)

106012/TS-M2(X,Y=0.01mm/100Div.)

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

C-interface camera

Machine vision; Medical imaging;

Semiconductor equipment; Testing instruments;

Document scanner; 2D code scanner;

Web camera or video surveillance;

Microscopic imaging;

Microscope electronic eyepiece

Telescope electronic eyepiece
