Product manual：

Product Features

· C-interface CMOS cameras using Sony or OnSemi CMOS sensors

· Resolution spans from 3.5 million to 10 million

· Compact aluminum alloy CNC precision machining oxidation shell

· USB 3.0 interface ensures high transfer rate

· Ultra Fine color engine ensures precise color reproduction

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK

C3CMOS12000KPA

CP112000A(2022)

12M/IMX577(C)

1/2.1“ (5.95x4.71)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

7.5@3840x3040

43@1920x1516

122@960x758

1x1

2x2

4x4

0.1ms~2000ms

C3CMOS10000KPA

CP110001A(2022)

10M/IMX577(C)

1/2.3“ (5.68x4.26)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

8.5@3664x2748

49@1832x1374

137@912x686

1x1

2x2

4x4

0.1ms~2000ms

C3CMOS05100KPA

CP105100A(2022)

5.1M/AR0521(C)

1/2.5“ (5.70x4.28)

2.2x2.2

18.8ke-/lux

73dB

40dB

15.5@2592x1944

49.5@1296x972

97.5@648x486

1x1

2x2

4x4

0.1ms~2000ms

C3CMOS05100KPB

CP105100B(2020)

5.1M/IMX335(C)

1/2.8“ (5.18x3.89)

2.0x2.0

505mV

70dB

43dB

25@2592x1944

40@1296x972

1x1

2x2

0.1ms~2000ms

C3CMOS04100KPA

CP104100A(2023)

4.1M/IMX347(C)

1/1.8“ (7.795x4.408)

2.9x2.9

2376mv with 1/30s

0.15mv with 1/30s

20@2688x1536

30@2048x1536

40@1536x1536

100@1344x768

1x1

1x1

1x1

1x1

0.1ms~5000ms

C3CMOS03500KPA

CP103500A(2020)

3.5M/SC4236(C)

1/2.6“ (5.76x3.84)

2.5x2.5

3.0v/lux-sec

72dB

37dB

30@2304x1536

30@1152x768

1x1

0.1ms~2000ms

C3CMOS10000KPA

CP110001A

20190518

10M/MT9J003(C)

1/2.3“ (5.98x4.58)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

7.2@3664x2748

23.8@1832x1374

77.4@912x686

1x1

2x2

4x4

0.1ms~2000ms

C3CMOS05100KPA

CP105100A

20181030

5.1M/MT9P006(C)

1/2.5“ (5.70x4.28)

2.2x2.2

1.76v/lux-sec

67.74dB

38.5dB

14.0@2592x1944

29.4@1280x960

103.1@640x480

1x1

2x2

4x4

0.1ms~2000ms

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

ROI white balance/manual Temp-Tint adjustment

Color restoration technology

Ultra-Fine Color Processing Engine

Capture and Control API

Windows/Linux/macOS/Android Multi Platform SDK

（Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain etc.）

Depth of Position

8 Bit

Recording method

Images and videos

Cooling method*

Natural cooling

Camera working environment

Working temperature (Celsius)

-10 ~ 50

Storage temperature (Celsius)

-20 ~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through a USB interface

Software operating environment

Operating system

Microsoft® Windows®XP/ Vista / 7 / 8 /10 /11(32 & 64 bit)

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 3.0 high-speed interface

Monitor: 17 "or above

CD-ROM

Schematic diagram of the external dimensions of C3CMOS series cameras. The camera housing is made of hard aluminum alloy that has been CNC precision machined and oxidized, giving it a beautiful and elegant appearance. The front end of the camera sensor is equipped with high-quality IR-CUT, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.

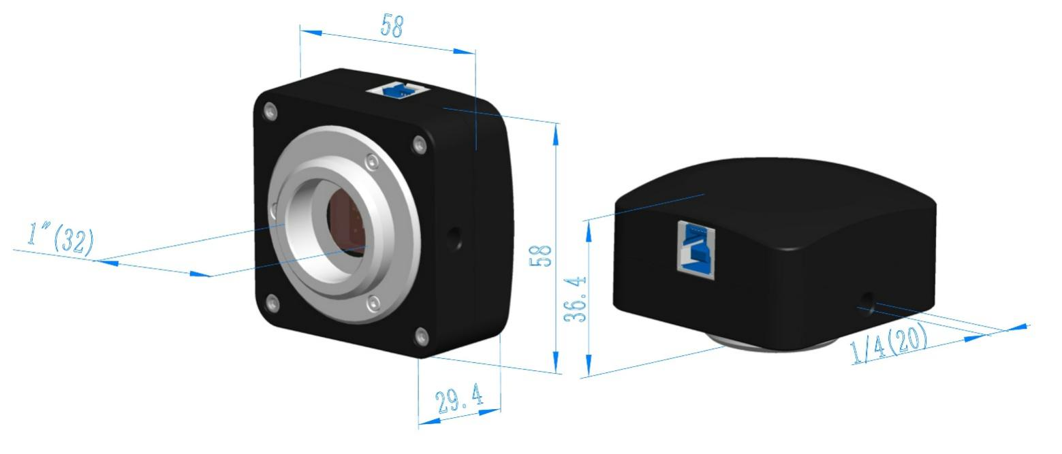

Schematic diagram of external dimensions of C3CMOS series camera

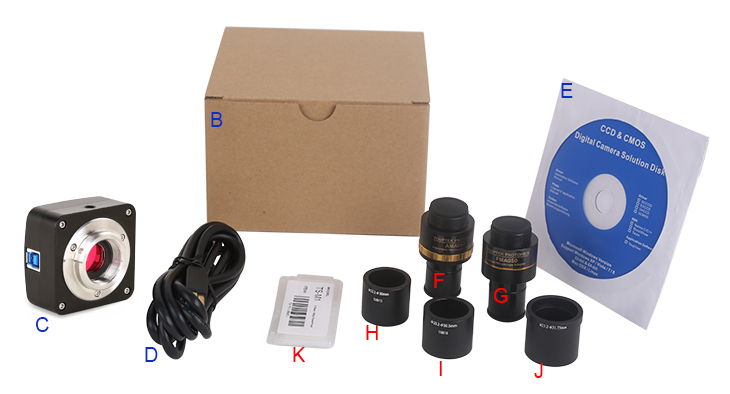

A

Packaging box specifications: L: 52cm W: 32cm H: 33cm (16pcs, 12-17Kg/carton), not shown in the above picture

B

Packaging box specifications: L:15cm W:15cm H:10cm (0.67~0.7Kg/ box)

C

One C3CMOS series camera

D

High speed USB 3.0 A to B gold-plated head data cable/2.0m

E

CD (driver and application software, Ø 12cm)

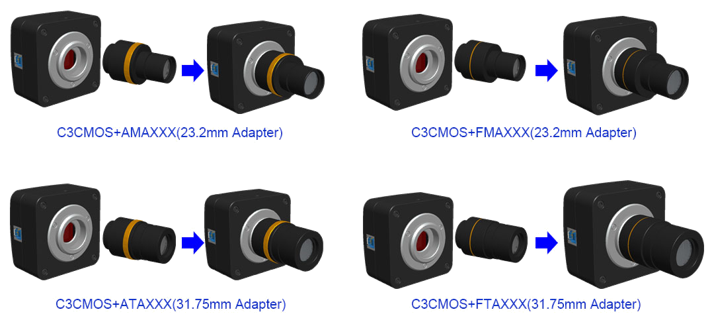

Optional Accessories

F

Adjustable focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

G

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108011/FTA037

108012/FTA050

108013/FTA075

Attention: For options F and G, please first confirm your camera model (C interface, microscope camera or telescope camera),

Engineers from Goptica Optics will assist you in selecting the appropriate microscope or telescope adapter based on your application;

H

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

I

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

J

108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube

K

Micrometer

106011/TS-M1(X=0.01mm/100Div.)；

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

C-interface camera

Machine vision; Medical imaging;

Semiconductor equipment; Testing instruments;

Document scanner; 2D code scanner;

Web camera or video surveillance;

Microscopic imaging;

Microscope electronic eyepiece

Telescope electronic eyepiece
