Product Feature

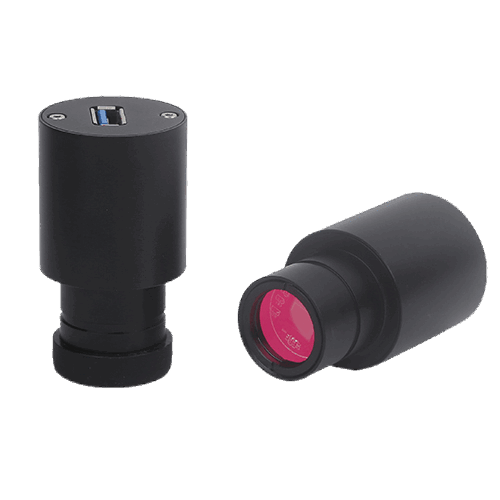

· 23.2mm diameter microscope eyepiece tube camera, compact structure

· Equipped with 23.2 to 30mm and 23.2 to 30.75mm adapters, it can also be used for stereomicroscopes

· C-interface CMOS camera using Aptina CMOS sensor

· Camera that can be extended to C interface or CS interface

· USB 3.0 interface ensures high transfer rate

· Automatic white balance and automatic exposure; Brightness, contrast, color, and saturation are adjustable

· Ultra Fine color engine ensures precise color reproduction

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/OSX multi platform SDK

S3CMOS05100KPA

TP305100A(New)

20200605

5.1M/IMX335(C)

1/2.8“ (5.18x3.89)

2.0x2.0

505mV

70dB

43dB

20@2592x1944

20@1280x960

20@640x480

1x1

1x1

1x1

0.1-2000 ms

S3CMOS05000KPA

TP305000A

5.0M/MT9P001(C)

1/2.5"(5.70x4.28)

2.2x2.2

0.53 V/lux-sec

66.5dB

40.5dB

15@2560x1920

15@2048x1536

30@1920x1080

1x1

2x2

Auto

S3CMOS05000KPC

TP305000C

5.0M/SC5033(C) 1/2.7"(5.18x3.89)

2.0x2.0

2 V/lux-sec

64dB

35dB

15@2592x1944

20@2048x1536

20@1600x1200

30@800x600

1x1

2x2

Auto

Spectral response range

380-650nm（with infrared cut-off filter）

Exposure range and method

Electronic Roller Shutter (ERS), Automatic

Data format

MJPEG / YUV

Capture/Control SDK

Native C++SDK, DirectShow, Twain

Recording method

Images and videos

Working temperature (Celsius)

-10 ~ 50

Storage temperature (Celsius)

-20 ~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through a USB interface

Software operating environment

Operating system

Microsoft® Windows®XP/ Vista / 7 / 8 /10 /11(32 & 64 bit)

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB接口：USB 3.0 high-speed interface

Monitor: 17 "or above

CD-ROM

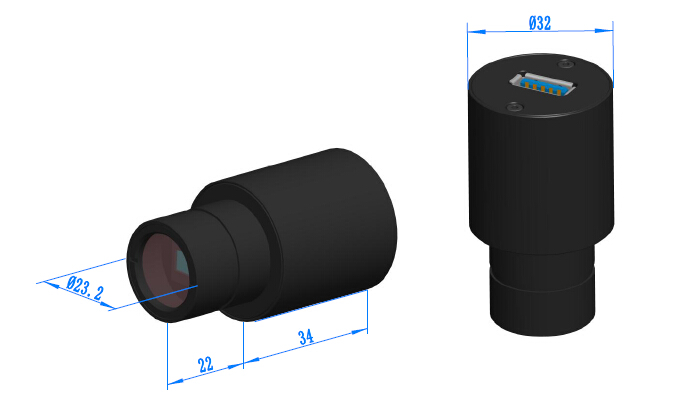

Outline dimension diagram of S3CMOS series eyepiece tube camera. The camera housing is made of hard aluminum alloy machined and then oxidized black. The size of the eyepiece tube electronic eyepiece is: Dia.32 X 56mm。 The front end of the camera sensor is equipped with high-quality IR-CUT, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the S3CMOS camera from Gewu Optics has a smaller size and no moving parts to ensure the camera is sturdy, reliable, and durable. At the same time, there is no imaging blur caused by the shaking of moving parts.

S3CMOS series camera size chart

A

Packaging box specifications: L: 52cm W: 32cm H: 33cm (20pcs, 12-17Kg/carton), not shown in the above picture

B

Packaging box specifications: L: 15cm W: 15cm H: 10cm (0.21-0.25Kg/small box)

C

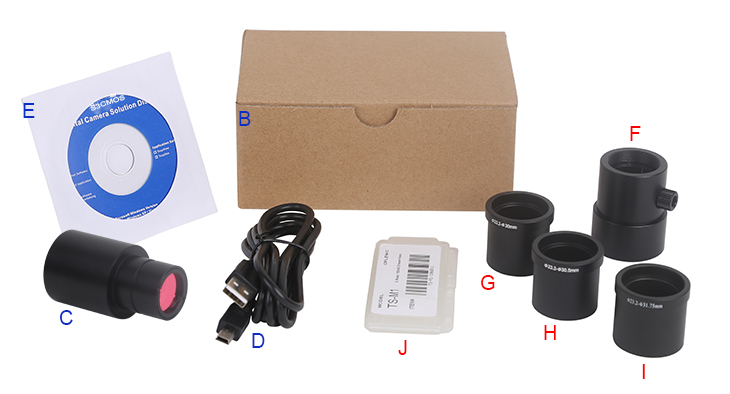

One S3CMOS series camera

D

High speed USB 3.0 A to A gold-plated head data cable/1.5 meters

E

CD (Drivers and Applications, Ø 8cm)

Optional Accessories

F

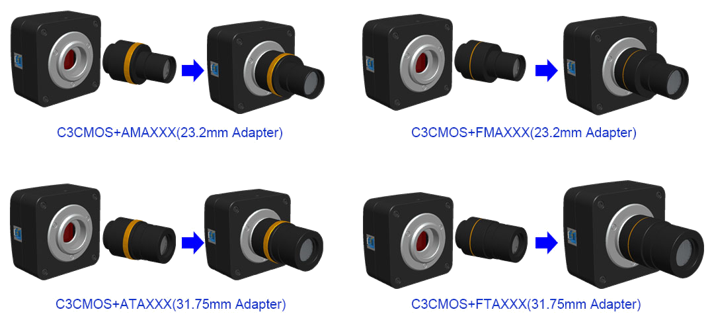

C interface connector: 108027 (HS502)

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

H

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube

J

Micrometer

106011/TS-M1(X=0.01mm/100Div.)；

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

C-interface camera

Machine vision; Medical imaging;

Semiconductor equipment; Testing instruments;

Document scanner; 2D code scanner;

Web camera or video surveillance;

Microscopic imaging;

Microscope electronic eyepiece

Telescope electronic eyepiece
