SCMOS Series CMOS Eyepiece Cartridge Cameras--Product Information--Shanghai Goptica Co., Ltd

Production information

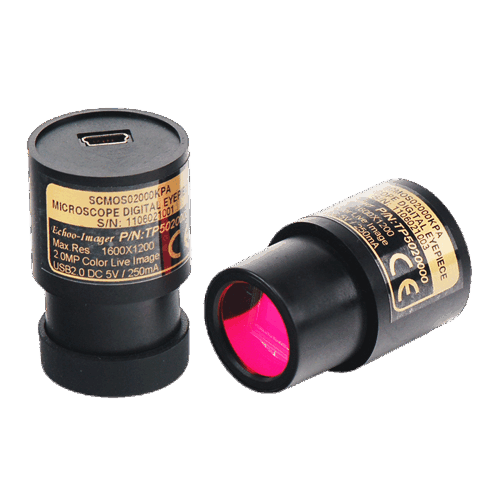

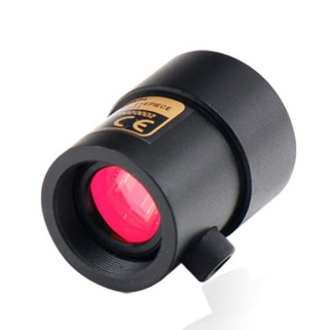

The SCMOS series camera is a 23.2mm microscope eyepiece tube interface CMOS camera with a simple and compact structure, and a reasonable price range. The front end of the camera adopts a standard 23.2mm eyepiece tube size, which can be directly inserted into the eyepiece tube to obtain the middle image of the microscope objective. Here, S represents an economic version with simple and compact structure（an economic version with simple and compact structure,23.2mm Dia eyepiece tube CMOS camera).

The SCMOS series cameras use USB 2.0 as the data transmission interface protocol.

The SCMOS series cameras are suitable for converting ordinary student monocular and binocular microscopes into digital microscopes. Paired with 23.2 to 30mm and 23.2 to 30.75mm, it can also be used for stereo microscopes. By converting stereo microscopes into digital ones, it has a wide range of applications.

Product manual：


Product features (before 2019)

· 23.2mm diameter microscope eyepiece tube camera, compact structure

· C-interface CMOS camera using Aptina CMOS sensor

· Camera that can be extended to C interface or CS interface

· Automatic white balance and automatic exposure; Brightness, contrast, color, and saturation are adjustable

· USB 2.0 interface ensures high transfer rate

· Ultra Fine color engine ensures precise color reproduction

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/OSX multi platform SDK

Product features (newly added after 2020)

· Using a Sony or Aptina CMOS sensor with a 23.2mm diameter microscope eyepiece tube camera,

Compact structure

· Resolution ranges from 1.3 million to 12 million

· USB 2.0 interface ensures high transfer rate

· Built in hardware ISP image processing engine with high color reproduction

· Hardware integrated large capacity storage chip ensures synchronous data transmission, high frame rate, and stability

· High performance MJPEG compression algorithm, combined with the unique decoding method of ToupView/ToupLite software

And image restoration algorithm, achieving the highest frame rate in the industry for USB2.0 cameras. 5MP and 8MP resolutions

Up to 30fps; 12MP resolution can reach 15fps

· Support automatic exposure and manual exposure switching, precise control of exposure time, and real-time adjustment of exposure target area

· Support automatic white balance, manual white balance, ROI white balance mode switching

· Support color adjustment function, color mode selection, real-time removal of bad pixels, and image flipping function

· Support histogram function, normal correction function, dark field correction function, ROI function

· Compliant with Microsoft USB Video Class protocol and supports third-party software extensions

· Compliant with CE and FCC protocols

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK;

Parameter

Name

Sensor model and size

Pixel(μm)

G light sensitivity

dynamic range

SN ratio

FPS/Resolution

Sampling average

Time of exposure

Newly launched SCMOS series in 2020

SCMOS12000KPA

TP512000A

12M/IMX577(C)

1/2.3“ (5.95x4.71)

1.55x1.55

250LSB

70dB

43dB

20@3840x3040

20@1920x1520

20@960x760

1x1

0.1-2000 ms

SCMOS00921KPA

TP500921A (2020)

0.92M/OV9732(C)

1/4“ (3.888x2.208)

3x3

2.066V/lux-sec

72dB@8x gain

39dB

30@1280x720

30@640x360

1x1

0.1ms~650ms

SCMOS08300KPA

TP508300A

8.3M/IMX274(C)

1/2.5“ (6.22x3.50)

1.62x1.62

236mV

70dB

43dB

30@3840x2160

30@1920x1080

30@1280x720

30@960x540

1x1

0.1-2000 ms

SCMOS05100KPA

TP505100A

5.1M/AR0521(C)

1/2.5“ (5.70x4.28)

2.2x2.2

18.8ke-/lus

73dB

40dB

30@2592x1944

30@1280x960

30@640x480

1x1

0.1-1000 ms

SCMOS05100KPB

TP505100B

5.1M/IMX335(C)

1/2.8“ (5.18x3.89)

2.0x2.0

505mV

70dB

43dB

26@2592x1944

26@1280x960

26@640x480

1x1

0.1-2000 ms

SCMOS03100KPA

TP503100A

3.1M/Aptina(C)

1/2.5“ (5.73x4.3)

2.8x2.8

18.8ke-/lus

73dB

40dB

30@2048x1536

30@1024x768

1x1

0.1-1000 ms

SCMOS02100KPA

TP502100A

2.1M/IMX307(C)

1/2.8“ (5.73x4.3)

2.9x2.9

1300mV

73dB

43dB

38@1920x1080

38@1024x768

1x1

0.1-2000 ms

SCMOS08300KPB

TP508300B (2020)

8.3M/IMX415(C)

1/2.8“ (5.57x3.13)

1.45x1.45

300mV

70dB

44dB

30@3840x2160

30@1920x1080

30@1280x720

30@960x540

1x1

0.1-2000 ms

SCMOS02100KPB

TP502100B (2020)

2.1M/SC2332 (C)

1/3“ (5.18x2.92)

2.7x2.7

4510mV/lux-s

74dB

38.5dB

30@1920x1080

30@960x540

1x1

0.1-2000 ms

SCMOS01301KPA

TP501301A(20220829)

1.3M/Special (C)

1/3“ (5.18x2.92)

3.41x3.41

4510mV/lux-s

74dB

38.5dB

30@1520x856

30@760x428

1x1

0.1-2000 ms

The products developed before December 31, 2019 are as follows

SCMOS05000KPA

TP505000A

5.0M/Aptina(C)

1/2.5“ (5.70x4.28)

2.2x2.2

2@2592x1944

3@2048x1536

5@1600x1200

7.5@1280x1024

N/A

Auto

SCMOS05000KPB

TP505000B(NEW)

5.0M/SC5033(C)

1/2.7“ (5.18x3.89)

2.0x2.0

2.0V/lux-sec

64dB

35dB

20@2592x1944

20@2048x1536

20@1600x1200

30@800x600

N/A

Auto

SCMOS03000KPA

TP503000A

3.0M/Aptina(C)

1/2.7“ (4.51x3.38)

2.2x2.2

3@2048x1536

5@1600x1200

7.5@1280x1024

N/A

Auto

SCMOS03000KPB

TP503000B(NEW)

3.0M/SmartSens(C)

1/3“ (4.10x3.07)

2.0x2.0

2.0V/lux-sec

64dB

35dB

20@2048x1536

20@1600x1200

30@800x600

N/A

Auto

SCMOS02000KPA

TP502000A

2.0M/Aptina(C)

1/3.2“ (4.48x3.36)

2.8x2.8

5@1600x1200

7.5@1280x1024

20@800x600

22@640x480

N/A

Auto

SCMOS02000KPB

TP502000B(NEW)

2.0M/OV2710(C)

1/2.7”(5.76x3.24)

3x3

3.3V/ Lux-sec

69dB

39dB

25@1920x1080

30@1280x1024

30@1280x720

N/A

Auto

SCMOS01300KPA

TP501300A

1.3M/Aptina(C)

1/3“ (4.60x3.70)

3.6x3.6

7.5@1280x1024

12.5@1024x768

12.5@800x600

N/A

Auto

SCMOS00920KPA

TP500A(NEW)

0.92M/BG0703(C)

1/2.7” (5.80x3.28)

4.5x4.5

5.8V/ Lux-sec

65dB

43dB

25@1280x720

25@640x480

N/A

Auto

SCMOS00350KPA

TP500350A

0.35M/Aptina(C)

1/4“ (3.58x2.69)

5.6x5.6

30@640x480

N/A

Auto

SCMOS05000KPB and SCMOS03000KPB are faster than SCMOS05000KPA and SCMOS03000KPA

C： Color; M： Monochrome or black and white;

Hardware configuration
Spectral response range	380-650nm（with infrared cut-off filter）
Exposure range and method	Electronic Roller Shutter (ERS), Automatic
white balance	Auto
Color restoration technology	N/A
Peak quantum efficiency	N/A
read noise	N/A
extinction ratio	N/A
Smear noise	N/A
Capture/Control SDK	DirectShow, Twain
Recording method	Images and videos
data format	MJPEG
Camera working environment
Working temperature (Celsius)	-10 ~ 50
Storage temperature (Celsius)	-20 ~ 60
Working humidity	30~80%RH
Storage humidity	10~60%RH
Power supply	The camera is powered through a USB interface
Software operating environment
operating system	Microsoft® Windows®XP/Vista / 7 / 8 /10 /11(32 & 64 bit)
Computer configuration	CPU: Intel Core 2 2.8GHz or higher
	Memory: 2GB or larger
	USB interface: USB 2.0 high-speed interface
	Monitor: 17 "or above
	CD-ROM

External dimensions

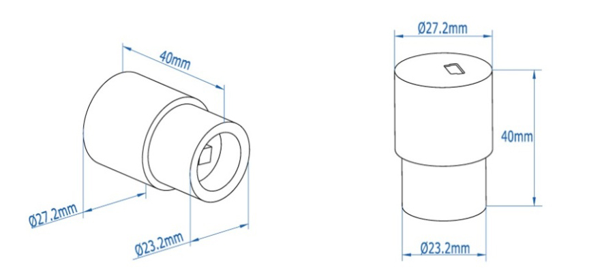

Outline dimension diagram of SCMOS series camera. The camera housing is made of hard aluminum alloy machined and then blackened. The size of the eyepiece tube electronic eyepiece is: Dia.27.2 X 40mm。 The front end of the camera sensor is equipped with high-quality IR-CUT, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.


SCMOS series camera size schematic diagram

Packing List

Standard packing list
A	Packaging box specifications: L: 52cm W: 32cm H: 33cm (50pcs, 12-17Kg/carton), not shown in the above picture
B	Packaging box specifications: L: 14cm W: 9.7cm H: 6cm (0.15~0.16Kg/small box)
C	SCMOS series cameras
D	High speed USB 2.0 A male to B male Mini gold-plated head data cable/2.0m
E	CD（Drivers and Applications, Ø 8cm）
Optional Accessories
F	C interface connector: 108027 (HS502)
G	108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring
H	108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube
I	108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tubeB
J	Micrometer	106011/TS-M1(X=0.01mm/100Div.)； 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

Product Picture	Product Model	Drawings And Specifications	Operation
Product Picture：	Product Model：ECMOS Series CMOS Cameras ECMOS08300KPA EP608300A Pixel：1.62x1.62μm，FPS/ resolution：4@3840x2160 16@1920x1080	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：ECMOS Series CMOS Cameras ECMOS06600KPA EP606600A Pixel：1.62x1.62μm，FPS/ resolution：5@3072x2160 6@2592x1944 6@3072x1728 7@2160x2160	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：ECMOS Series CMOS Cameras ECMOS05300KPA EP605300A Pixel：2.4x2.4μm，FPS/ resolution：5.5@3072 x1728 35@1280x720	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：ECMOS Series CMOS Cameras ECMOS05000KPA EP605000A Pixel：2.0x2.0μm，FPS/ resolution：6.4@2592 x1944 26.7@1296x972	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：ECMOS Series CMOS Cameras ECMOS03100KPA EP603100A Pixel：2.5x2.5μm，FPS/ resolution：11.5@2048x1536 18.3@1920x1080 18.1@1600x1200 29.5@1024x768	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：ECMOS Series CMOS Cameras ECMOS02000KPA EP602000A Pixel：2.9 x2.9μm，FPS/ resolution：17@1920x1080	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：ECMOS Series CMOS Cameras ECMOS01200KPA EP601200A Pixel：3.75 x3.75μm，FPS/ resolution：27@1280x960 54@640x480	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：LCMOS Series CMOS Cameras LCMOS14000KPA LP614000A Pixel：1.4x1.4μm，FPS/ resolution：2.7@4096x3288 10@2048x1644 35@1024 x822	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：LCMOS Series CMOS Cameras LCMOS12000KPA LP612000A(2022) Pixel：1.55x1.55μm，FPS/ resolution：3@3840x3040 11@1920x1516 47@960x758	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：LCMOS Series CMOS Cameras LCMOS10000KPA LP610000A(2022) Pixel：1.55x1.55μm，FPS/ resolution：3.3@3584x2748 12@1792x1374 53@896x684	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：LCMOS Series CMOS Cameras LCMOS09000KPA LP609000A(2022) Pixel：1.55x1.55μm，FPS/ resolution：3.5@3488x2616 13@1744x1308 55@872x654	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：LCMOS Series CMOS Cameras LCMOS08000KPA LP608000A(2022) Pixel：1.55x1.55μm，FPS/ resolution：4@3264x2448 15@1600x1200 62@800x600	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：LCMOS Series CMOS Cameras LCMOS05100KPA LP605100A(2022) Pixel：2.2x2.2μm，FPS/ resolution：7.0@2592x1944 27.7@1296x972 100.5@648x486	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：LCMOS Series CMOS Cameras LCMOS03100KPB LP603100B(2022) Pixel：2.5x2.5μm，FPS/ resolution：11.5@2048x1536 29.5@1024x768	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：LCMOS Series CMOS Cameras LCMOS01300KPA LP601300A Pixel：3.6x3.6μm，FPS/ resolution：15@1280x1024 26@640x512 48@320x256	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：LCMOS Series CMOS Cameras LCMOS01200KPB LP601200B Pixel：3.75 x3.75μm，FPS/ resolution：28@1280x960 30@640x480	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UCMOS Series CMOS Cameras UCMOS14000KPA TP614000A Pixel：1.4x1.4μm，FPS/ resolution：1.8@4096x3288 10@2048x1644 27@1024x822	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UCMOS Series CMOS Cameras UCMOS12000KPA TP612000A(2022) Pixel：1.55x1.55μm，FPS/ resolution：3@3840x3040 11@1920x1516 47@960x758	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UCMOS Series CMOS Cameras UCMOS10000KPA TP610000A(2022) Pixel：1.55x1.55μm，FPS/ resolution：3.3@3584x2748 12@1792x1374 53@896x684	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UCMOS Series CMOS Cameras UCMOS09000KPB TP609000B(2022) Pixel：1.55x1.55μm，FPS/ resolution：3.5@3488x2616 13@1744x1308 55@872x654	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UCMOS Series CMOS Cameras UCMOS08000KPB TP608000B(2022) Pixel：1.55x1.55μm，FPS/ resolution：4@3264x2448 15@1600x1200 62@800x600	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UCMOS Series CMOS Cameras UCMOS05100KPA Pixel：2.2x2.2μm，FPS/ resolution：7.0@2592x1944 27.7@1296x972 100.5@648x486	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UCMOS Series CMOS Cameras UCMOS04100KPA TP604100A(2023) Pixel：2.9x2.9μm，FPS/ resolution：8.5@2688x1536 11.5@2048x1536 15@1536x1536 34@1344x768	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UCMOS Series CMOS Cameras UCMOS04100KPB TP604100B(20230725) Pixel：2.9x2.9μm，FPS/ resolution：8.5@2688x1520 34@1344x760	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UCMOS Series CMOS Cameras UCMOS03100KPB TP603100B(2022) Pixel：2.5x2.5μm，FPS/ resolution：11.5@2048x1536 29.5@1024x768	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UCMOS Series CMOS Cameras UCMOS01300KPA TP601300A Pixel：3.75x3.75μm，FPS/ resolution：15@1280x960 15@1280x720	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UA Series CMOS Cameras UA1600CA UP901600A Pixel：1.335x1.335μm，FPS/ resolution：2@4632x3488 8@2320x1740 11@1536x1160	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UA Series CMOS Cameras UA1200CA UP901200A(2022) Pixel：1.55x1.55μm，FPS/ resolution：3@3840x3040 11@1920x1516 47@960x758	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UA Series CMOS Cameras UA1000CA UP901000A(2022) 像素：1.55x1.55μm，FPS/分辨率：3.3@3584x2748 12@1792x1374 53@896x684	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UA Series CMOS Cameras UA630CA UP900630A(2023) Pixel：2.4x2.4μm，FPS/ resolution：5fps@3072×2048 20fps@1536×1024	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UA Series CMOS Cameras UA630MA UM900630A(2023) Pixel：2.4x2.4μm，FPS/ resolution：5fps@3072×2048 20fps@1536×1024	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UA Series CMOS Cameras UA510CA Pixel：2.2x2.2μm，FPS/ resolution：7.0@2592x1944 27.7@1296x972 100.5@648x486	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UA Series CMOS Cameras UA410CA UP900410A(2023) Pixel：2.9x2.9μm，FPS/ resolution：8.5@2688x1536 11.5@2048x1536 15@1536x1536 34@1344x768	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UA Series CMOS Cameras UA410CB UP900410AB(20230725) Pixel：2.9x2.9μm，FPS/ resolution：8.5@2688x1520 34@1344x760	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UA Series CMOS Cameras UA310CB UP900310B(2022) Pixel：2.5x2.5μm，FPS/ resolution：11.5@2048x1536 29.5@1024x768	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：UA Series CMOS Cameras UA130CA UP900130A Pixel：3.75x3.75μm，FPS/ resolution：25@1280x960 25@1280x720	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：C2CMOS Series CMOS Cameras C2CMOS12000KPA CP212000A(2020) Pixel：1.55x1.55μm，FPS/ resolution：20@3840x3040 20@1920x1520 20@960x760	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：C2CMOS Series CMOS Cameras C2CMOS08300KPA CP208300A Pixel：1.62x1.62μm，FPS/ resolution：30@3840x2160 30@1920x1080 30@1280x720 30@960x540	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：C2CMOS Series CMOS Cameras C2CMOS05100KPA CP205100A Pixel：2.2x2.2μm，FPS/ resolution：30@2592x1944 30@1280x960 30@640x480	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：C2CMOS Series CMOS Cameras C2CMOS05100KPB CP205100B Pixel：2.0x2.0μm，FPS/ resolution：26@2592x1944 26@1280x960 26@640x480	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：C2CMOS Series CMOS Cameras C2CMOS03100KPA CP203100A Pixel：2.8x2.8μm，FPS/ resolution：30@2048x1536 30@1024x768	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：C2CMOS Series CMOS Cameras C2CMOS02100KPA CP202100A Pixel：2.9x2.9μm，FPS/ resolution：38@1920x1080 38@960x540	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SPCMOS Series CMOS Barrel Cameras with Telescopic Eyepieces SPCMOS05000KPA SP505000A Pixel：2.2x2.2μm，FPS/ resolution：2@2592x1944 3@2048x1536 5@1600x1200 7.5@1280x1024	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SPCMOS Series CMOS Barrel Cameras with Telescopic Eyepieces SPCMOS03000KPA SP503000A Pixel：2.2x2.2μm，FPS/ resolution：3@2048x1536 5@1600x1200 7.5@1280x1024	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SPCMOS Series CMOS Barrel Cameras with Telescopic Eyepieces SPCMOS02000KPA SP502000A Pixel：2.8x2.8μm，FPS/ resolution：5@1600x1200 7.5@1280x1024 7.5@1280x960 20@800x600	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SPCMOS Series CMOS Barrel Cameras with Telescopic Eyepieces SPCMOS01300KPA SP501300A Pixel：3.6x3.6μm，FPS/ resolution：7.5@1280x1024 12.5@1024x768 12.5@800x600	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SPCMOS Series CMOS Barrel Cameras with Telescopic Eyepieces SPCMOS00350KPA SP500350A Pixel：5.6x5.6μm，FPS/ resolution：30@640x480	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SPCMOS Series CMOS Barrel Cameras with Telescopic Eyepieces SPCMOS05100KPB SP505100B Pixel：2.0x2.0m，FPS/ resolution：26@2592x1944 26@1280x960 26@640x480	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS12000KPA TP512000A Pixel：1.55x1.55μm，FPS/ resolution：20@3840x3040 20@1920x1520 20@960x760	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS00921KPA TP500921A (2020) Pixel：3x3μm，FPS/ resolution：30@1280x720 30@640x360	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS08300KPA TP508300A Pixel：1.62x1.62μm，FPS/ resolution：30@3840x2160 30@1920x1080 30@1280x720 30@960x540	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS05100KPA TP505100A Pixel：2.2x2.2μm，FPS/ resolution：30@2592x1944 30@1280x960 30@640x480	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS05100KPB TP505100B Pixel：2.0x2.0μm，FPS/ resolution：26@2592x1944 26@1280x960 26@640x480	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS03100KPA TP503100A Pixel：2.8x2.8μm，FPS/ resolution：30@2048x1536 30@1024x768	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS02100KPA TP502100A Pixel：2.9x2.9μm，FPS/ resolution：38@1920x1080 38@1024x768	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS08300KPB TP508300B (2020) Pixel：1.45x1.45μm，FPS/ resolution：30@3840x2160 30@1920x1080 30@1280x720 30@960x540	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS02100KPB TP502100B (2020) Pixel：2.7x2.7μm，FPS/ resolution：30@1920x1080 30@960x540	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS系列CMOS目镜筒式相机 SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS01301KPA TP501301A(20220829) Pixel：3.41x3.41μm，FPS/ resolution：30@1520x856 30@760x428	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS05000KPA TP505000A Pixel：2.2x2.2μm，FPS/ resolution：2@2592x1944 3@2048x1536 5@1600x1200 7.5@1280x1024	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS05000KPB TP505000B(NEW) Pixel：2.0x2.0μm，FPS/ resolution：20@2592x1944 20@2048x1536 20@1600x1200 30@800x600	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS03000KPA TP503000A Pixel：2.2x2.2μm，FPS/ resolution：3@2048x1536 5@1600x1200 7.5@1280x1024	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS03000KPB TP503000B(NEW) Pixel：2.0x2.0μm，FPS/ resolution：20@2048x1536 20@1600x1200 30@800x600	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS02000KPA TP502000A Pixel：2.8x2.8μm，FPS/ resolution：5@1600x1200 7.5@1280x1024 20@800x600 22@640x480	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS02000KPB TP502000B(NEW) Pixel：3x3μm，FPS/ resolution：25@1920x1080 30@1280x1024 30@1280x720	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS01300KPA TP501300A Pixel：3.6x3.6μm，FPS/ resolution：7.5@1280x1024 12.5@1024x768 12.5@800x600	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS00920KPA TP500A(NEW) Pixel：4.5x4.5μm，FPS/ resolution：25@1280x720 25@640x480	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：SCMOS Series CMOS Eyepiece Cartridge Cameras SCMOS00350KPA TP500350A Pixel：5.6x5.6μm，FPS/ resolution：30@640x480	Drawings And Specifications：	Operation：inquiry
