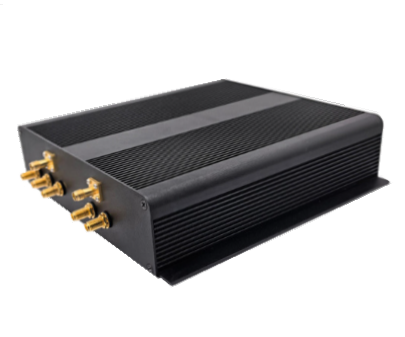

The RF Driver can generate radio frequency signals and can be controlled in terms of switching, frequency, power, etc., via an external modulation signal. The RF frequency can be fixed or adjustable with a range of frequencies, mainly between 20MHz and 250MHz. The RF power ranges from 1W to 150W, modulation frequency from 1Hz to 1MHz, with a 50Ω load impedance, and supports both digital and analog modulation. It is typically powered by a standard 24V supply.
Description:
Goptica has a professional R&D and production team, and the products are manufactured in-house throughout the entire process. Customized drivers can be produced according to customer requirements.
Application:
AO devices，EO devices , Lasers,Ultrafast laser, Laser machine,lnterferometer, Lithography ,LiDAR,Fiber sensor etc.
Product Code
| FR
(MHz) | RF
Power
(W) | Frequency
stability
(ppm/℃） | VSWR | Rise/Fall
time(ns) | Trigger
frequency | Trigger
delay
(ns) | SHG
(dBc) | Impedance
(Ω) | Power
supply | Cooling |
| RD1001-041-24-100-WA | 40.68 | 100 | ±40 | 1.2：1 | 90-150 | 1MHz | 110 | -25 | 50 | 24 | Water cooling |
| RD1002-080-24-025-CZ | 80 | 25 | ±40 | 1.2：1 | 20-50 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1003-080-24-050-SA | 80 | 50 | ±40 | 1.2：1 | 20-50 | 1MHz | 50 | -25 | 50 | 24 | Heat sink cooling |
| RD1004-068-24-025-CZ | 68 | 25 | ±40 | 1.2：1 | 20-50 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1005-110-24-025-CA | 110 | 25 | ±40 | 1.2：1 | 20-50 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1006-027-24-050-SZ | 27.12 | 50 | ±40 | 1.3：1 | 80-100 | 1MHz | 110 | -25 | 50 | 24 | Heat sink cooling |
| RD1007-041-24-025-CZ | 40.68 | 25 | ±40 | 1.3：1 | 20-50 | 100kHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1010-200-24-025-CA | 200 | 25 | ±40 | 1.3：1 | 20-50 | 100kHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1012-200-24-003-CA | 200 | 3 | ±40 | 1.2：1 | ＜10 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1016-080-24-020-CA | 80 | 20 | ±40 | 1.3：1 | 20-50 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1018-041-24-050-SZ | 40.68 | 50 | ±40 | 1.5：1 | 80-100 | 100kHz | 110 | -20 | 50 | 24 | Heat sink cooling |
| RD1019-068-24-050-SZ | 68 | 50 | ±40 | 1.5：1 | 80-100 | 100kHz | 110 | -20 | 50 | 24 | Heat sink cooling |
| RD1020-100-24-003-CA | 100 | 3 | ±20 | 1.2：1 | ＜40 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1022-200-24-015-CA | 200 | 15 | ±40 | 1.3：1 | 20-50 | 100kHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1023-068-24-025-CZ | 68 | 25 | ±40 | 1.2：1 | 20-50 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1024-087-24-003-CA | 87 | 3 | ±20 | 1.2：1 | ＜15 | 100MHz | 50 | -20 | 50 | 24 | Conduction-cooled |
| RD1025-250-24-003-CA | 250 | 3 | ±40 | 1.2：1 | 20-50 | 100kHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1026-100-24-020-CA | 100 | 20 | ±40 | 1.3：1 | 20-50 | 100kHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1028-110-24-003-CA | 110 | 3 | ±40 | 1.3：1 | 20-50 | 100kHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1034-110-24-050-SZ | 110 | 50 | ±40 | 1.3：1 | 80-100 | 100kHz | 110 | -20 | 50 | 24 | Heat sink cooling |
| RD1036-080-24-015-CZ | 80 | 15 | ±40 | 1.2：1 | ＜20 | 100kHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1042-041-24-120-WA | 40.68 | 120 | ±40 | 1.2：1 | ＜80 | 1MHz | 110 | -35 | 50 | 24 | Water cooling |
| RD1044-080-24-100-WA | 80 | 100 | ±10 | 1.5：1 | 90-150 | 100kHz | 110 | -20 | 50 | 24 | Water cooling |
| RD1051-080-24-003-CA | 80 | 3 | ±0.1 | 1.1：1 | ＜40 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1052-040-24-003-CA | 40 | 3 | ±0.1 | 1.1：1 | ＜50 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1053-060-24-050-SA | 60 | 50 | ±40 | 1.3：1 | 80-100 | 100kHz | 110 | -30 | 50 | 24 | Heat sink cooling |
| RD1054-020-24-003-CA | 20 | 3 | ±0.1 | 1.2：1 | ＜100 | 100kHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1056-080-24-003-CA | 80 | 3 | ±20 | 1.1：1 | 40 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1057-200-24-003-CA | 200 | 3 | ±20 | 1.1：1 | ＜10 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1058-200-24-003-CA | 200 | 3 | ±20 | 1.1：1 | ＜10 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1064-115-24-003-CA | 115 | 3 | ±20 | 1.2：1 | ＜35 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1065-125-24-020-CA | 125 | 20 | ±40 | 1.2：1 | 20-50 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1067-080-24-008-CZ | 80 | 8 | ±40 | 1.2：1 | 20-50 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1070-040-24-180-WA | 40 | 180 | ±20 | 1.2：1 | ＜80 | 1MHz | 110 | -35 | 50 | 24 | Water cooling |
| RD1072-080-24-025-CZ | 80 | 25 | ±40 | 1.3：1 | 20-50 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RD1073-080-24-025-CZ | 80 | 25 | ±40 | 1.3：1 | 20-50 | 1MHz | 50 | -25 | 50 | 24 | Conduction-cooled |
| RB1002-100_50-24-020-CT | 100 | 20 | ±2.5 | 2.1：1 | ＜50 | / | / | -25 | 50 | 24 | Conduction-cooled |
| RB1003-230_110-24-005-CT | 230 | 5 | ±2.5 | 2.5：1 | ＜50 | / | / | -25 | 50 | 24 | Conduction-cooled |
| RB1004-148_50-24-004-CT | 148 | 4 | ±2.5 | 2.5：1 | ＜50 | / | / | -25 | 50 | 24 | Conduction-cooled |
| RB1005-240_10-24-003-CT | 240 | 3 | ±0.1 | 1.5：1 | ＜10 | / | / | -25 | 50 | 24 | Conduction-cooled |
| RB1006-073_6-24-003-CT | 73 | 3 | ±0.1 | 1.3：1 | 50 | / | / | -25 | 50 | 24 | Conduction-cooled |
| RB1008-080_60-24-003-CT | 80 | 3 | ±1 | 1.3：1 | / | / | / | -30 | 50 | 24 | Conduction-cooled |
| RB1009-052_20-24-002-CT | 52 | 2 | ±1 | 1.3：1 | / | / | / | -30 | 50 | 24 | Conduction-cooled |
| RB1010-200_100-24-020-CT | 200 | 20 | ±1 | 1.3：1 | / | / | / | -30 | 50 | 24 | Conduction-cooled |
| RB1011-200_50-24-003-CT | 200 | 3 | ±1 | 1.3：1 | / | / | / | -30 | 50 | 24 | Conduction-cooled |
| RB1012-040_20-24-007-CT | 40 | 7 | ±2.5 | 1.1：1 | 50 | / | / | -25 | 50 | 24 | Conduction-cooled |
| RB1013-085_40-24-004-CT | 85 | 4 | ±1 | 1.3：1 | / | / | / | -30 | 50 | 24 | Conduction-cooled |
| RB1014-110_10-24-002-CT | 110 | 2 | ±1 | 1.3：1 | / | / | / | -30 | 50 | 24 | Conduction-cooled |
| RB2001-170_80-24-020-CT | 170 | 20 | ±2.5 | 2.5：1 | ＜50 | / | / | -25 | 50 | 24 | Conduction-cooled |
| RB2002-080_80-24-004-CT | 80 | 4 | ±0.1 | 1.5：1 | ＜20 | / | / | -20 | 50 | 24 | Conduction-cooled |
| RB2003-110_60-24-020-CT | 110 | 20 | ±2.5 | 2.5：1 | / | / | / | -25 | 50 | 24 | Conduction-cooled |
| RB2006-105_90-24-003-CT | 105 | 3 | ±2.5 | 2.5：1 | / | / | / | -25 | 50 | 24 | Conduction-cooled |
| RB2008-170_40-24-070-CT | 170 | 70 | ±2.5 | 2.5：1 | / | / | / | -25 | 50 | 24 | Conduction-cooled |
| RB2009-080_30-24-070-CT | 80 | 70 | ±2.5 | 2.5：1 | / | / | / | -25 | 50 | 24 | Conduction-cooled |
