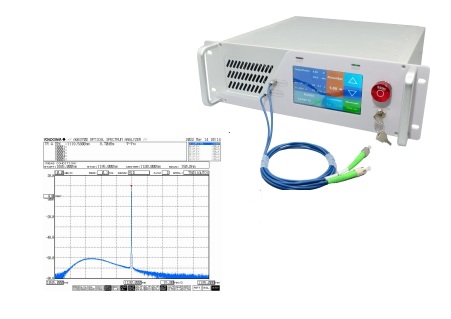

SM Fiber Coupled Laser (1120nm)
 |
|
This laser is equipped with a butterfly shaped
semiconductor laser chip,a professionally
designed driver and temperature control circuit
ensures the safe operation of the laser, as well
as stable output power and spectrum. It is
suitable as a seed laser for high-power lasers
and can also be used for production testing of
optical devices, providing Basic or Module
packaging.
product brochure： |
|
Feature
· High Output Power · Power & Spectrum stable · SM or PM Output
|
|
Application
· Seed Laser · Optic Test · Research on Nonlinear Optics
|
|
Parameter
Optical Parameter | Units | Typical Values | Notes |
Wavelength | nm | 1120 |
|
Resolution | nm | ±2 |
|
| Bandwidth | nm | <0.1
|
|
Working Mode | - | CW | Continuous |
Output Power | W | 5/10 | High Power Type |
OP regulation range | - | 10~100% | *optional features |
S-term FS(15 min) | dB | ≤ ±0.02 | ~≤±0.5% |
L-term FS(8 h) | dB | ≤ ±0.05 | ~≤±1.2% |
Polarization State | - | Random | Linear Polarized |
|
Tail Fiber Type | - | Hi-1060 | PM980 |
|
Connector Type | - | FC/APC | FC/APC | Slow Axis Alignment |
Electrical&Environmental | Basic | Module |
Control Mode | Button/RS232 | RS232 |
Communication Interface | DB9 Female | DB9 Female |
Power Supply | 100~240V AC, <30W | 12V DC, <60W |
Size(mm) | 260(W)×280(D)×120(H) | 139(W)×235(D)×70(H) |
Operating temperature | -5~+35°C |
Operating humidity range | 0~70% |
Ordering Information
FHL | λ(nm) | Output Power | Tail Fiber Type |
Package Type |
| 1120 | 5/10(W) |
SM= HI-1060 PM= PM980 | M=Module B=Basic |
|
