The MAX camera is equipped with Sony Exmor CMOS or GSENSE series high-performance large pixel or full frame image sensors. In response to the inherent thermal noise of the sensors, an efficient cooling module is specially designed to reduce the operating temperature of the camera sensors by up to 40 degrees below ambient temperature. Aiming at the common phenomenon of low-temperature fogging on the surface of sensors, an anti fogging structure has been designed to ensure that the sensor surface will not fog under low temperature conditions. The MAX series, a unique technology, greatly reduces image noise and ensures the acquisition of high-quality images; The video and image data transmission of MAX series cameras is achieved through the USB 3.0 fast transfer protocol interface for fast preview. The temperature of MAX series camera sensors can be controlled through software to ensure the highest possible photoelectric conversion quantum efficiency under low video or image noise (Sony Exmor CMOS or GSENSE series high-performance image sensors also have significantly reduced quantum efficiency at particularly low temperatures, so temperature controllability is quite important). The MAX series cameras support free operation or trigger operation mode, and can capture single or multiple images at once. Integrated with highly stable industrial grade IO modules, it can synchronize with multiple external devices or work synchronously with multiple cameras. The MAX series cameras come with ToupView/ToupLite advanced image processing software to control the camera and process captured images. |
Product Features

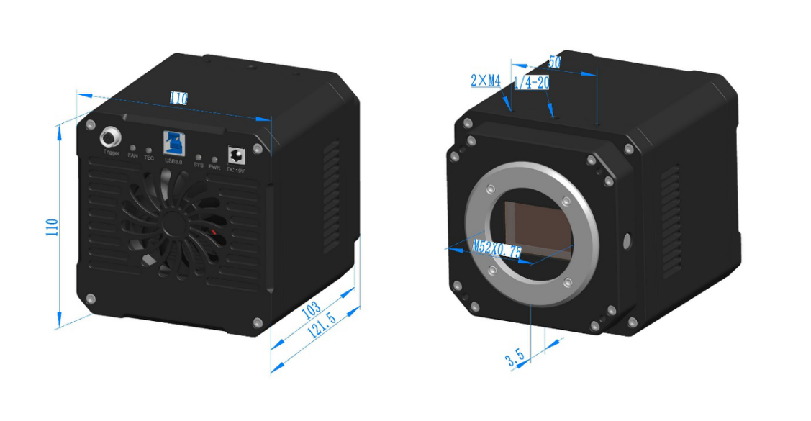

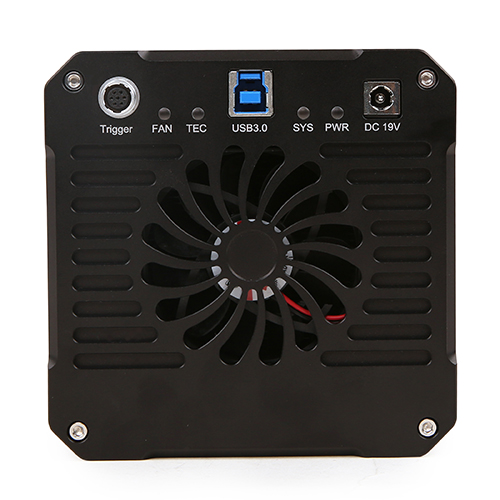

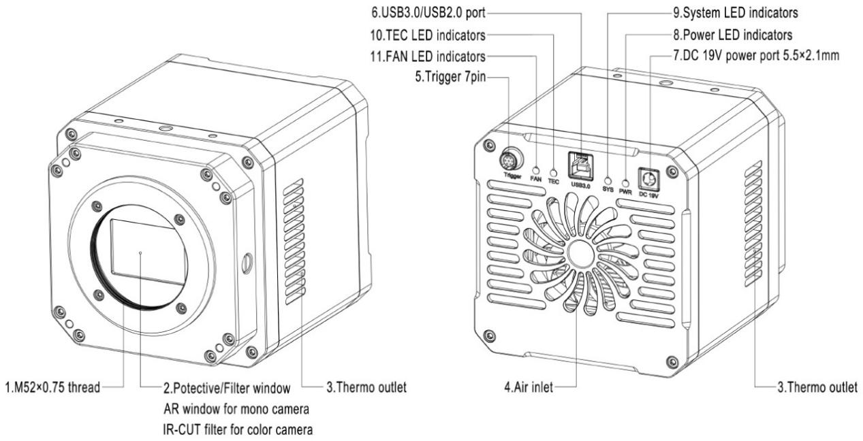

· Scientific grade based on SONY Exmor CMOS or GSENSE series full frame or large pixel photosensitive chips Professional Camera · A high-performance TE cooling structure designed by dual level professionals, with a flexible structure and fast heat dissipation speed. The temperature can be controlled arbitrarily, The temperature drop can reach up to 50 degrees Celsius · The working temperature of the sensor can be regulated to the desired temperature within 5 minutes · Exquisite anti fogging structure ensures that the sensor surface will not fog under ultra-low temperature conditions · IR-CUT or dual AR film protective glass (optional) · M52 x 0.75 or C interface · High speed USB 3.0 interface, with a transfer speed of up to 5Gbits/s
|
· Supports precise exposure control technology for up to 1000 seconds
· Built in ISP module with up to 16 bits · Built in 2D denoising function · Built in sharpening function · Ultra Fine color processing engine, achieving perfect color reproduction capability · Support capturing videos and images in software/hardware triggered mode · Provide advanced video and image processing application software ToupView/ToupLite with the camera · Provide Windows/Linux/macOS/Android multi platform standard SDK
|
