Product manual：

CTR3CMOS camera

Product Features

· Scientific grade professional camera based on SONY Exmor CMOS sensor

· A professionally designed high-performance TE cooling structure with a compact structure and fast heat dissipation speed.

  Temperature can be controlled arbitrarily, with a maximum temperature drop of 5-10 degrees Celsius

· Exquisite anti fog structure ensures that the sensor surface will not fog at operating temperature

· High speed USB 3.0/GigE interface, with a transfer speed of up to 5Gbits/s/1000Mb/s

· Supports precise exposure control technology for up to 5 minutes

· Support capturing images in video mode or trigger mode

· Support external IO synchronization triggering mode

· Ultra Fine color processing engine, achieving perfect color reproduction capability

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK

Application

· Mingchang microscope

· Dark field, differential interference (DIC) microscope

· Live cell imaging, cellular or tissue pathology testing, cytology

· Defect analysis, semiconductor testing, precision measurement

· Low light fluorescence imaging, GFP or RFP analysis, fluorescence in situ hybridization (FISH)

· Fluorescence resonance energy transfer microscope, total internal reflection fluorescence microscope, real-time confocal microscope, failure analysis, astrophotography

CTR3CMOS00390KMA

CTRM100390A

0.39M/IMX287(M,GS)

1/2.9”(4.97x3.73)

6.9 x 6.9

7320mV with 1/30s

0.76mV with 1/30s

20fps@720x540

8 Bit / 12 Bit

1x1

6us~300s

CTR3CMOS00503KMA

CTRM100503A

0.5M/IMX426(M,GS)

1/1.7”(7.2x5.58)

9.0 x 9.0

8100mV with 1/30s

0.3mV with 1/30s

20fps@800x620

8 Bit / 12 Bit

1x1

6us~300s

CTR3CMOS01700KPA

CTRP101700A

1.7M/IMX432(C,GS)

1.1 “(14.4x9.9)

9.0 x 9.0

4910mv with 1/30s

0.3mv with 1/30s

98.6fps@1600×1100

8 Bit / 12 Bit

1x1

6us~300s

CTR3CMOS01700KMA

CTRM101700A

1.7M/IMX432(M,GS)

1.1 “(14.4x9.9)

9.0 x 9.0

8100mv with 1/30s

0.3mv with 1/30s

98.6fps@1600×1100

8 Bit / 12 Bit

1x1

6us~300s

CTR3CMOS07100KPA

CTRP107100A

7.0M/IMX428(C,GS)

1.1 “(14.4x9.9)

4.5 x 4.5

2058mv with 1/30s

0.15mv with 1/30s

51.3fps@3200×2200

133.8fps@1584×1100

8 Bit / 12 Bit

1x1

1x1

6us~300s

CTR3CMOS07100KMA

CTRM107100A

7.0M/IMX428(M,GS)

1.1 “(14.4x9.9)

4.5 x 4.5

3354mv with 1/30s

0.15mv with 1/30s

51.3fps@3200×2200

133.8fps@1584×1100

8 Bit / 12 Bit

1x1

1x1

6us~300s

CTR3CMOS20000KPA

CTRP120000A

20M/IMX183(C,RS)

1 “(13.056x8.755)

2.4 x 2.4

462mv with 1/30s

0.21mv with 1/30s

19.0@5440x3648

48.8@2736x1824

59.4@1824x1216

8 Bit / 12 Bit

1x1

2x2

3x3

53us~300s

CTR3CMOS20000KMA

CTRM120000A

20M/IMX183(M,RS)

1 “(13.056x8.755)

2.4 x 2.4

776mv with 1/30s

0.21mv with 1/30s

19.0@5440x3648

48.8@2736x1824

59.4@1824x1216

8 Bit / 12 Bit

1x1

2x2

3x3

53us~300s

CTR3CMOS45000KMA

CTRM145000A

45M/IMX492(M,RS)

4/3”(19.11x13.00)

2.315 x 2.315

351mV with 1/30s

0.12mV with 1/30s

8.1@8176x5616

30.0@4080x2808

8.1@7408x5556

33.0@3696x2778

10.4@8176x4320

34.7@4096x2160

62.5@2048x1080

86.5@1360x720

8 Bit / 12 Bit

1x1(3:2)

2x2(3:2)

1x1(4:3)

2x2(4:3)

1x1(17:9)

2x2(17:9)

3x3(17:9)

4x4(17:9)

0.1ms~300s

CTR3CMOS01700KPA-G

20231018

1.7M/IMX432(C,GS)

1.1 “(14.4x9.9)

9.0 x 9.0

4910mv with 1/30s

0.3mv with 1/30s

66fps@1600×1100

8 Bit / 12 Bit

1x1

6us~300s

CTR3CMOS01700KMA-G

20231018

1.7M/IMX432(M,GS)

1.1 “(14.4x9.9)

9.0 x 9.0

8100mv with 1/30s

0.3mv with 1/30s

66fps@1600×1100

8 Bit / 12 Bit

1x1

6us~300s

CTR3CMOS07100KPA-G

20231018

7.0M/IMX428(C,GS)

1.1 “(14.4x9.9)

4.5 x 4.5

2058mv with 1/30s

0.15mv with 1/30s

16.4fps@3200×2200

66fps@1600×1100

8 Bit / 12 Bit

1x1

1x1

6us~300s

CTR3CMOS07100KMA-G

20231018

7.0M/IMX428(M,GS)

1.1 “(14.4x9.9)

4.5 x 4.5

3354mv with 1/30s

0.15mv with 1/30s

16.4fps@3200×2200

66fps@1600×1100

8 Bit / 12 Bit

1x1

1x1

6us~300s

CTR3CMOS20000KPA-G

20231018

20M/IMX183(C,RS)

1 “(13.056x8.755)

2.4 x 2.4

462mv with 1/30s

0.21mv with 1/30s

4.5@5440x3648

18.5@2736x1824

41.7@1824x1216

8 Bit / 12 Bit

1x1

2x2

3x3

53us~300s

CTR3CMOS20000KMA-G

20231018

20M/IMX183(M,RS)

1 “(13.056x8.755)

2.4 x 2.4

776mv with 1/30s

0.21mv with 1/30s

4.5@5440x3648

18.5@2736x1824

41.7@1824x1216

8 Bit / 12 Bit

1x1

2x2

3x3

53us~300s

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

ROI white balance/manual Temp-Tint调整（not provided for black and white cameras）

Color restoration technology

Ultra-Fine Color Processing Engine

Capture/Control SDK

Native C/C++, C#, DirectShow, Twain and Labview

Recording method

Images and videos (triggered by software or hardware)

Cooling method*

Circulating thermoelectric refrigeration system, below 25 degrees Celsius below ambient temperature, precise and controllable (slightly different depending on sensor model)

Camera working environment

Working temperature (Celsius)

-10~ 50

Storage temperature (Celsius)

-20~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera and cooling module are powered by an external power source, DC12V，3A

Software operating environment

Operating system

Microsoft® Windows®XP/ Vista / 7 / 8 /10 /11(32 & 64 bit)

OS X (Mac OS X)

Linux

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 3.0 high-speed interface, compatible with USB 2.0 interface

Monitor: 17 "or above

CD-ROM

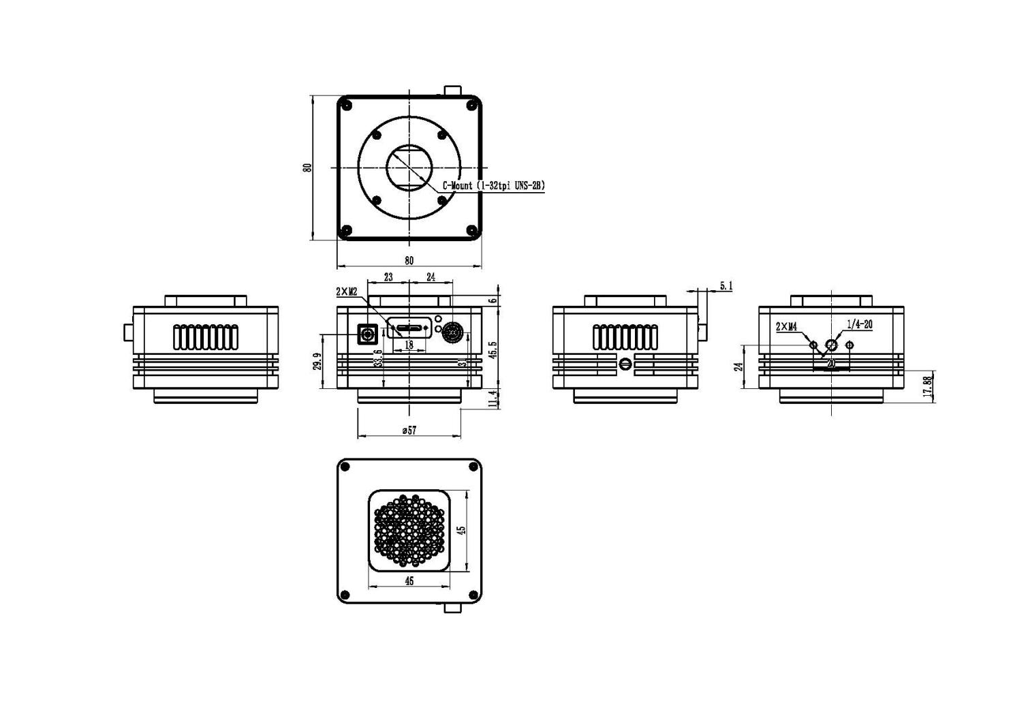

Schematic diagram of the external dimensions of CTR3CMOS series cameras. The camera housing is made of hard aluminum alloy through CNC precision machining, with a compact structure that is easy to integrate. The front end of the camera sensor is equipped with high-quality IR-CUT or double-sided AR protective glass, which mainly filters out infrared light waves in imaging and protects the camera sensor.

Compared to other brands of cameras, the TE cooled camera from Gewu Optics has good sealing performance. After the cooling fan of the camera is dampened, there will be no image blur caused by fan shaking.

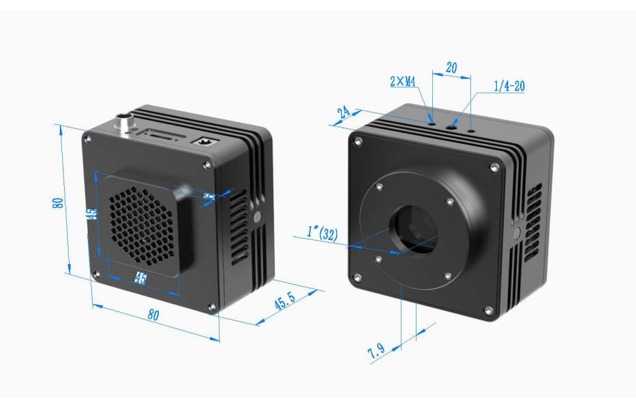

CTR3CMOS series camera outline dimension diagram

Outline Dimensional Diagram (TBD) of CTR3CMOS Series Camera

A

Packaging box specifications L: 50cm W: 30cm H: 30cm (20pcs, 12-17Kg/carton), not shown in the figure here

B

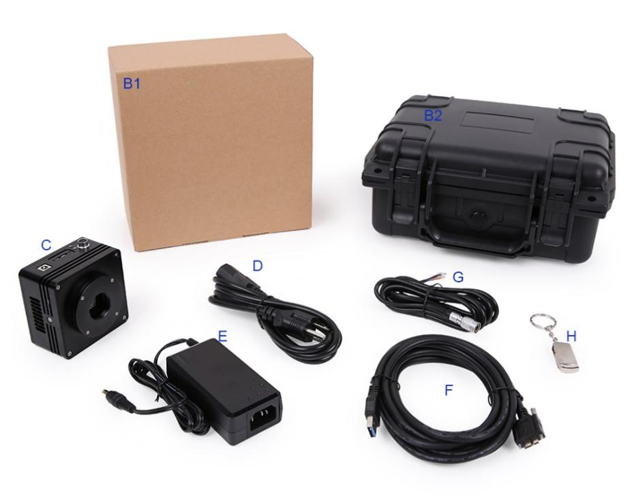

B1: L: 20.4cm W: 20.40cm H: 10cm (1pcs, 1.04kg/box)

 B2: 3-A Instrument Safety Box: L: 28cm W: 23.0cm H: 15.5cm (1pcs, 2.1kg/box); Outer packaging carton size: L:28.2cm W:25.2cm H:16.7cm

C

One CTR3CMOS series camera

D

Power cord (optional for national, American, European, and British standards)

E

Power adapter: Input: AC 100~240V 50Hz/60Hz， Output: DC 12V 3A

F

High speed USB 3.0 data cable/3.0m

G

IO connection cable

H

USB flash drive (driver and application software)

Optional attachments (not shown in the figure)

I

Adjustable focus eyepiece tube adapter (not provided)

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

108004/AMA100

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

108011/ATA100

J

Fixed eyepiece tube adapter (not provided)

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

108008/FMA100

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108011/FTA037

108012/FTA050

108013/FTA075

108014/FTA100

Attention: For options I and J, please first determine your camera model (C interface, microscope camera or telescope camera). The engineers at Gewu Optics will help you choose the appropriate microscope or telescope adapter based on your application;

K

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

L

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

M

Micrometer

106011/TS-M1(X=0.01mm/100Div.)

106012/TS-M2(X,Y=0.01mm/100Div.)

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

A

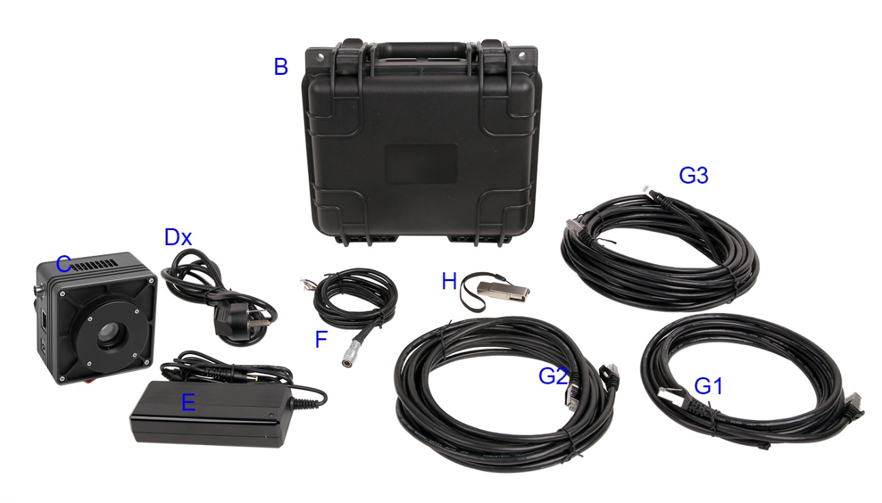

B outer box (not shown in the picture) outer packaging carton size: L:28.2cm W:25.2cm H:16.7cm

B

3-A Instrument Safety Box: L: 28cm W: 23.0cm H: 15.5cm (1pcs, 2.8Kg/box)

C

SWIR series GigE camera

D

Power cords, including national standard, American standard, European standard, and British standard power cords (D1, D2, D3, D4, not shown in the diagram)

E

Power adapter: Input: AC 100~240V 50Hz/60Hz， Output: DC 12V 3A

F

One external trigger control line

G

Network cable: G1: 3m, G2: 5m, G3: 10m (G4: 50m not shown in the figure)

USB flash drive (containing drivers and application software)
