Product manual：

CTR3CMOS camera

Product Features

· Scientific grade professional camera based on SONY CCD sensor

· A high-performance TE cooling structure designed by dual level professionals, with a flexible structure and fast heat dissipation speed.

  Temperature can be controlled arbitrarily, with a maximum temperature drop of up to 50 degrees Celsius

· Exquisite anti fogging structure ensures that the sensor surface will not fog under ultra-low temperature conditions

· IR-CUT dual AR film protective glass (optional)

· High speed USB 3.0 interface, with a transfer speed of up to 5Gbits/s

· Supports precise exposure control technology for up to 1 hour

· Support video and software/hardware trigger modes to capture single or multiple frames of images

· Ultra Fine color processing engine, achieving perfect color reproduction capability

· Provide advanced video and image processing application software ToupView with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK

Application

· Mingchang microscope

· Dark field, differential interference (DIC) microscope

· Live cell imaging, cellular or tissue pathology testing, cytology

· Defect analysis, semiconductor testing, precision measurement

· Low light fluorescence imaging, GFP or RFP analysis, fluorescence in situ hybridization (FISH)

· Fluorescence resonance energy transfer microscope, total internal reflection fluorescence microscope, real-time confocal microscope, failure analysis, astrophotography

MTR3CCD12000KPA

MP112000A

12M/ICX834AQG(C)

1“ (13.15x8.77)

3.1x3.1

420mv with 1/30s

15.2mv with 1/30s

3.6@4248x2836

3.6@2124x1418

1x1

2x2

0.06ms~1h

MTR3CCD12000KMA

MM112000A

12M/ICX834ALG(M)

1“ (13.15x8.77)

3.1x3.1

420mv with 1/30s

12mv with 1/30s

(F8.0)

3.6@4248x2836

3.6@2124x1418

1x1

2x2

0.06ms~1h

MTR3CCD09000KPA

MP109000A

9.0M/ICX814AQG(C)

1“ (12.47x9.98)

3.69x3.69

580mv with 1/30s

12mv with 1/30s

4.4@3388x2712

4.4@1694x1356

1x1

2x2

0.06ms~1h

MTR3CCD09000KMA

MM109000A

9.0M/ICX814ALG(M)

1“ (12.47x9.98)

3.69x3.69

660mv with 1/30s

12mv with 1/30s

(F8.0)

4.4@3388x2712

4.4@1694x1356

1x1

2x2

0.06ms~1h

MTR3CCD06000KPA

MP106000A

6.0M/ICX694AQG(C)

1“ (12.48x9.99)

4.54x4.54

880mv with 1/30s

8mv with 1/30s

7.5@2748x2200

14@2748x1092

1x1

0.06ms~1h

MTR3CCD06000KMA

MM106000A

6.0M/ICX694ALG(M)

1“ (12.48x9.99)

4.54x4.54

1000mv with 1/30s

8mv with 1/30s

7.5@2748x2200

14@2748x1092

1x1

0.06ms~1h

MTR3CCD02800KPA

MP102800A

2.8M/ICX674AQG(C)

2/3“ (8.81x6.63)

4.54x4.54

800mv with 1/30s

4mv with 1/30s

15@1938x1460

17@1610x1212

18@1930x1092

1x1

0.05ms~1h

MTR3CCD02800KMA

MM102800A

2.8M/ICX674ALG(M)

2/3“ (8.81x6.63)

4.54x4.54

950mv with 1/30s

4mv with 1/30s

15@1938x1460

17@1610x1212

18@1930x1092

1x1

0.05ms~1h

MTR3CCD01400KPA

MP101400A

1.4M/ICX285AQ(C)

2/3“ (8.88x6.70)

6.45x6.45

1240mv with 1/30s

10mv with 1/30s

15@1360x1024

1x1

0.07ms~1h

MTR3CCD01400KMA

MM101400A

1.4M/ICX285AL(M)

2/3“ (8.88x6.70)

6.45x6.45

1300mv with 1/30s

11mv with 1/30s

15@1360x1024

1x1

0.07ms~1h

MTR3CCD01400KPB

MP101400B

1.4M/ICX825AQA(C)

2/3“ (8.88x6.70)

6.45x6.45

2000mv with 1/30s

4.8mv with 1/30s

25@1376x1040

1x1

0.07ms~1h

MTR3CCD01400KMB

MM101400B

1.4M/ICX825ALA(M)

2/3“ (8.88x6.70)

6.45x6.45

2000mv with 1/30s

4.8mv with 1/30s

25@1376x1040

1x1

0.07ms~1h

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

ROI white balance/manual Temp-Tint adjustment/black and white camera not provided

Color restoration technology

Ultra-Fine Color Processing Engine

Capture/Control SDK

Windows/Linux/macOS/Android Multi Platform SDK

（Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain etc.)

Depth of Position

8 Bit / 14 Bit

Recording method

Images and videos (triggered by software or hardware)

Cooling method*

Double stage circulating thermoelectric refrigeration system, below 40 degrees Celsius below ambient temperature, precise and controllable (slightly different depending on sensor model)

Camera working environment

Working temperature (Celsius)

-10~ 50

Storage temperature (Celsius)

-20~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through the USB 3.0 interface (compatible with USB 2.0)

The refrigeration module is powered by an external power source, DC12V，3A

Software operating environment

Operating system

Microsoft® Windows®XP/ Vista / 7 / 8 /10 /11(32 & 64 bit)

OS X (Mac OS X)

Linux

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 3.0 high-speed interface, compatible with USB 2.0 interface

Monitor: 17 "or above

CD-ROM

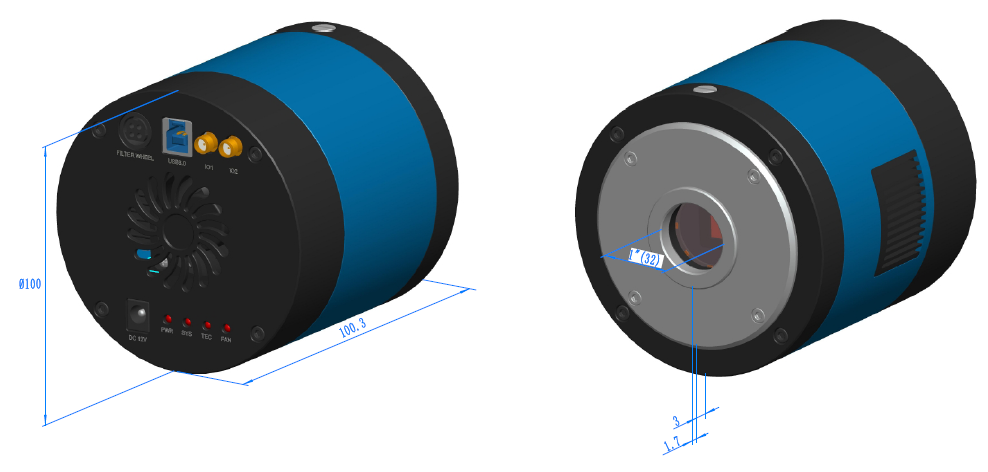

Outline dimension diagram of MTR3CCD series camera. The camera housing is made of hard aluminum alloy through CNC precision machining. The front end of the camera sensor is equipped with high-quality IR-CUT or double-sided AR protective glass, which mainly filters out infrared light waves in imaging and protects the camera sensor.

Compared to other brands of cameras, the TE cooled camera from Goptica Optics has good sealing performance. After the cooling fan of the camera is dampened, there will be no image blur caused by fan shaking.

CTR3CMOS series camera outline dimension diagram

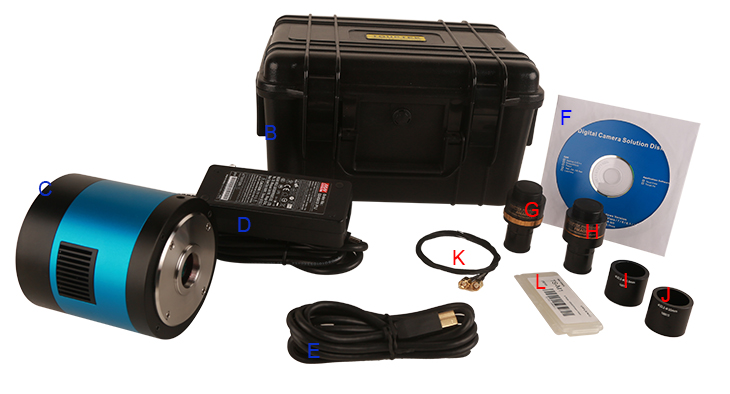

A

Packaging box specifications L: 50cm W: 30cm H: 30cm (20pcs, 12-17Kg/carton), not shown in the figure here

B

3-A instrument safety box: L: 28cm W: 23.0cm H: 15.5cm (1pcs, 2.8Kg/box); Outer packaging carton size: L:28.2cm W:25.2cm H:16.7cm

C

One MTR3CCD series camera

D

Power adapter: Input: AC 100~240V 50Hz/60Hz， Output: DC 12V 3A

E

High speed USB 3.0 A to B gold-plated head data cable/2.0m

F

CD（driver and application software, Ø12cm）

Optional attachments (not shown in the figure)

G

Adjustable focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

108004/AMA100

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

108011/ATA100

H

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

108008/FMA100

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108011/FTA037

108012/FTA050

108013/FTA075

108014/FTA100

Attention: For the G and H options, please first determine your camera model (C interface, microscope camera or telescope camera), and the engineers at Gewu Optics will help you choose the appropriate microscope or telescope adapter based on your application;

I

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

J

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

K

External trigger control line (optional if required)

M

Micrometer

106011/TS-M1(X=0.01mm/100Div.)

106012/TS-M2(X,Y=0.01mm/100Div.)

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
