Product manual：

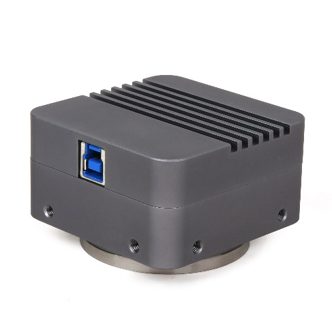

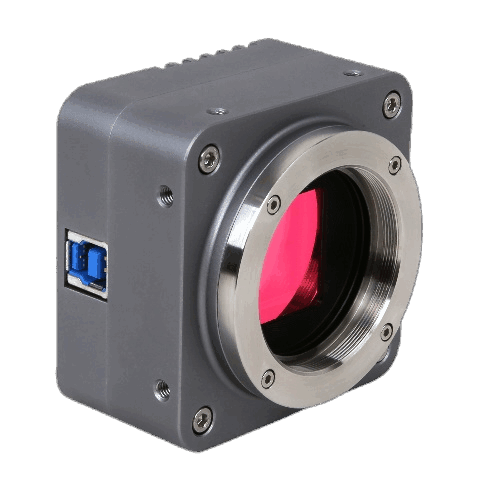

Different perspective images of BIGEYE series cameras

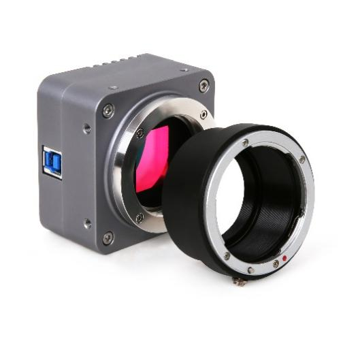

BIGEYE+F interface

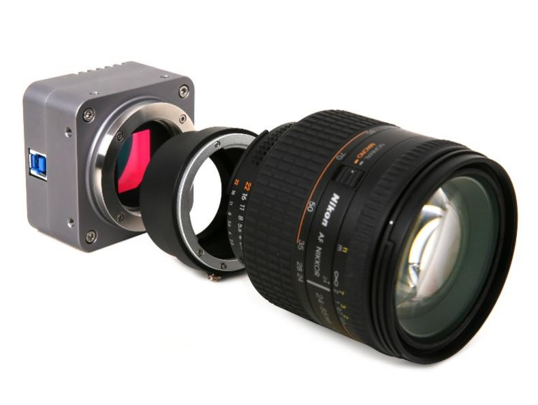

BIGEYE + F interface+lens

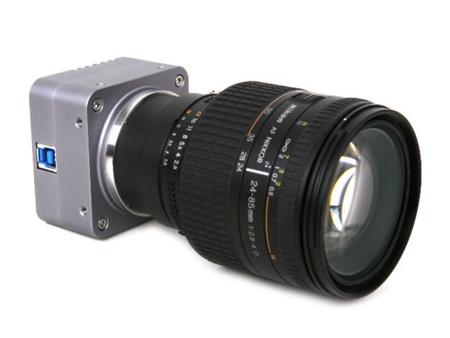

BIGEYE+lens with F interface installed

The situation where the F interface BIGEYE is connected to the lens together

Product Features

· M42x0.75 interface using Sony Exmor CMOS or GSENSE back illuminated sensors

  CMOS USB 3.0 camera

· Adopting parallel A/D conversion technology to achieve ultra-low noise and low power consumption

· Hardware resolutions range from 4.2M to 10.3M, among others

· Real time 8/12 bit switching, any ROI size

· Zinc aluminum alloy precision CNC shell

· USB 3.0 interface ensures high transfer rate

· Ultra Fine hardware ISP video streaming engine ensures accurate color reproduction and fast speed

(For a 10 megapixel camera, the speed reaches 30 frames per second)

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK

BIGEYE10000KPA

BP910000A

10.3M/IMX294(C)

4/3 “(17.47x12.86)

4.63x4.63

419mv with 1/30s

0.12mv with 1/30s

30@3704x2778

34.5@4096x2160

39.5@2760x2072

62@2048x1080

86@1360x720

8 Bit / 12 Bit

1x1

1x1

1x1

2x2

3x3

0.1ms~15s

BIGEYE4200KMA

BM94200A

4.2M/GSENSE2020e

(M,RS)

1.2”(13.31x13.31)

6.5x6.5

8.1x107 (e-/((W/m2).s))

Peak QE 72.5% @595nm

13(e-/s/pix)

45@2048x2048

45@1024 x 1022

8 Bit / 12 Bit

1x1

2x2

0.01ms~60s

BIGEYE4200KMB

BM94200B

4.2M/GSENSE2020BSI

(M,UV, RS)

1.2”(13.31x13.31)

6.5x6.5

1.1x108 (e-/((W/m2).s))

Peak QE 93.7% @550nm

80(e-/s/pix)

22@2048 x2048

22@1024 x1024

8 Bit / 12 Bit

1x1

2x2

0.01ms~60s

BIGEYE4200KMC

BM94200C

4.2M/GSENSE2020BSI

(M,UV, RS)

1.2”(13.31x13.31)

6.5x6.5

1.1x108 (e-/((W/m2).s))

Peak QE 93.7% @550nm

80(e-/s/pix)

44@2048x2048

44@1024x1024

44@680x680

44@512x512

8 Bit / 12 Bit

1x1

2x2

0.01ms~60s

BIGEYE4200KMD

BM94200D

4.2M/GSENSE2020BSI

(M,UV, RS)

1.2”(13.31x13.31)

6.5x6.5

1.1x108 (e-/((W/m2).s))

Peak QE 93.7% @550nm

80(e-/s/pix)

44@2048x2048

44@1024x1024

8 Bit / HDR 16 Bit

1x1

2x2

0.01ms~60s

MIPI4200KMB

BM94201B

4.2M/GSENSE2020BSI

(M,UV, RS)

1.2”(13.31x13.31)

6.5x6.5

1.1x108 (e-/((W/m2).s))

Peak QE 93.7% @550nm

80(e-/s/pix)

22@2048x2046

8 Bit / 12 Bit

1x1

0.01ms~60s

BIGEYE4200KME

BM94200E

4.2M/GSENSE400BSI

(M, UV, RS)

2.0“(22.53x22.53)

11x11

3.25x108 (e-/((W/m2).s))

Peak QE 95.3% @560nm

345(e-/s/pix)

37@2048 x2048

37@1024 x1024

8 Bit / 12 Bit

1x1

2x2

0.01ms~60s

BIGEYE1300KMA

BM91300A(2021)

1.3M/GLUX9701BSI

(M,UV, RS)

1”(12.49x9.99)

9.76x9.76

2.57x108 (e-/((W/m2).s))

Peak QE 89% @610nm

40(e-/s/pix)

30@1280x1024

30@640x512

8 Bit / HDR 16 Bit

1x1

2x2

0.05ms~60s

BIGEYE4200KMB

BM94200B

2.5~2.9

Upgradeable to support 2D denoising, hardware Auto Level (not supported by default, power consumption after upgrade is around 2.9W),

22@2048 x2048

22@1024 x1024

BIGEYE4200KMC

BM94200C

3.0

High frame rate, RAW12 format

44@2048x2048(12bit)

44@1024x1024(12bit)

BIGEYE4200KMD

BM94200D

3.0

High frame rate, high dynamic, Combined HDR 16 bit (high gain 12 bit data and low gain 12 bit data output simultaneously),

Combining 16 bit HDR data within FPGA

44@2048x2048(16bit)

44@1024x1024(16bit)

MIPI4200KMB

BM94201B

TBD

MIPI D-PHY CSI-2 1Ch 4Lane（suitable for application on embedded platforms such as HiSilicon and Rockchip Micro）

22@2048x2046(12bit)

BIGEYE4200KMB，BIGEYE4200KMC，BIGEYE4200KMD Cameras Have Identical Hardware.

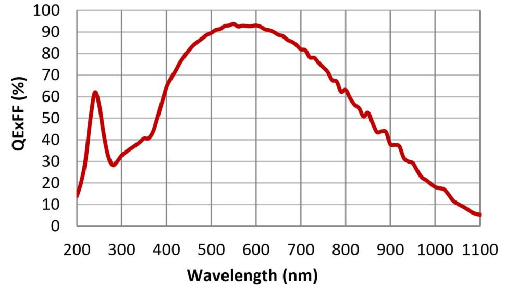

GSENSE2020BSI Spectral Response zz Curve

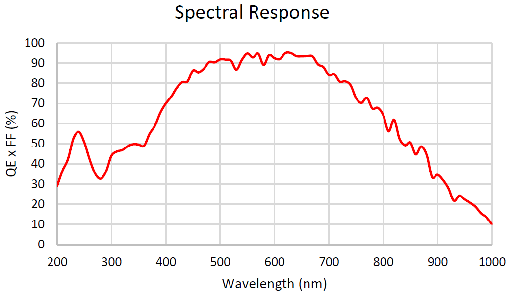

Spectral response curve of GSENSE400BSI

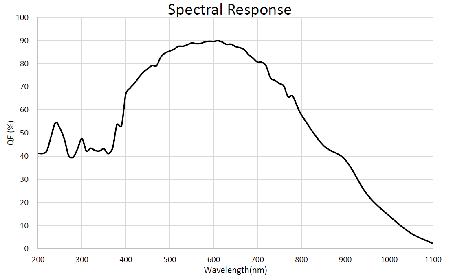

GLUX9701BSI Spectral Response Curve

Spectral response range

200-1100 (UV camera, without IR-CUT infrared cut-off filter, depending on sensor) or 400-900nm

White balance

ROI white balance/manual Temp-Tint adjustment

Color restoration technology

Ultra Fine Hardware ISP Video Processing Engine

Capture and Control API

Windows/Linux/macOS/Android Multi platform SDK (native C/C++, C #/VB. NET, Python, Java, DirectShow, Twain, etc.)

External trigger

Images and videos

Recording method

SDK and demo code

Cooling method*

Natural cooling

Camera working environment

Working temperature (Celsius)

-10 ~ 50

Storage temperature (Celsius)

-20 ~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through a USB interface

Software operating environment

Operating system

Microsoft® Windows®XP/ Vista / 7 / 8 /10 /11(32 & 64 bit)

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 3.0 high-speed interface or USB 2.0 interface

Monitor: 17 "or above

CD-ROM

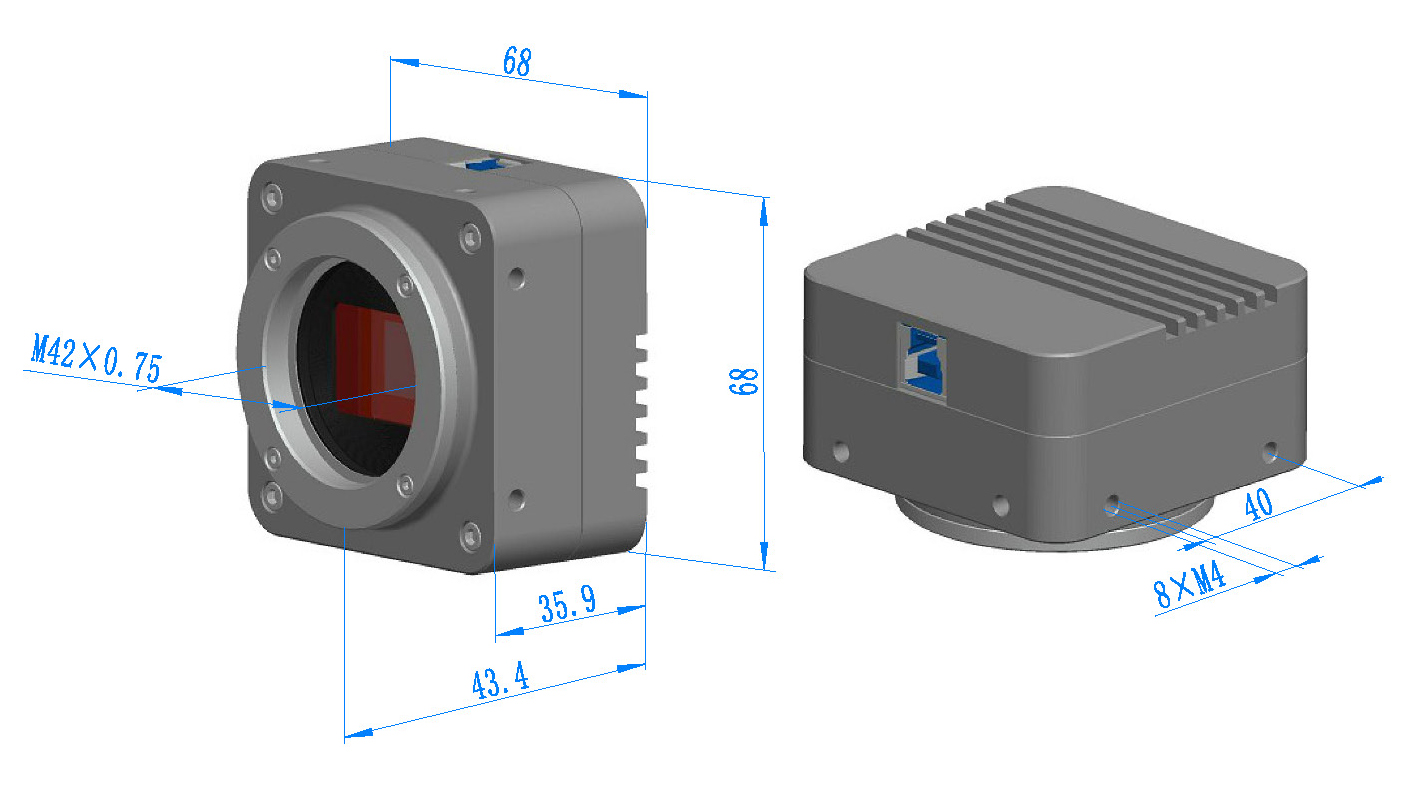

Schematic diagram of the external dimensions of BIGEYE series cameras. The camera housing is made of hard zinc aluminum alloy processed by CNC machining, which is beautiful and elegant. The front end of the camera sensor is equipped with high-quality IR-CUT or dual AR film, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.

BIGEYE series camera outline dimension diagram

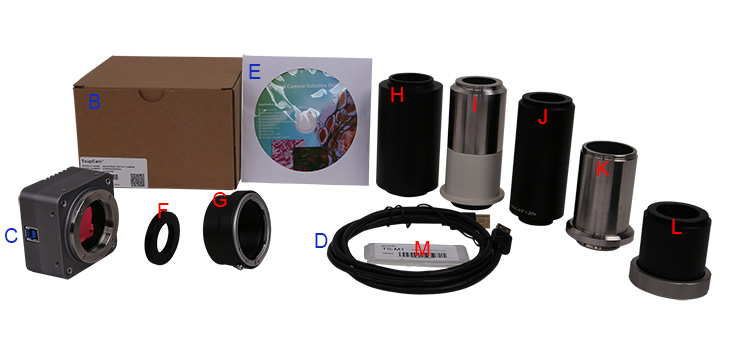

A

Packaging box specifications: L: 52cm W: 32cm H: 33cm (20pcs, 12-17Kg/carton), not shown in the above picture

B

Packaging box specifications：L:15cm W:15cm H:10cm (0.58~0.6Kg/ box)

C

One BIGEYE series camera

D

High speed USB 3.0 A to B gold-plated head data cable/2.0m

E

CD (driver and application software, Ø 12cm)

Optional Accessories

F

M42x0.75mm interface to C-interface converter (if C-interface adapter needs to be connected)

G

M42x0.75mm interface to F-interface converter (if F-interface lens is required)

H

M42x0.75mm interface to F-interface converter (if F-interface lens is required)

I

Microscope photography interface to M42x0.75 interface adapter (MQD42120 MBB42120, suitable for Nikon microscope)

J

Microscope photography interface to M42x0.75 interface adapter (P95-T2 4/P95-C 1 "1.0 x 3" 1.2x suitable for Zeiss Primo Star series, Zeiss Primo Vert series microscope

K

Microscope photography interface to M42x0.75 interface adapter (11541510-120 HT2-1.2X, suitable for Leica microscope)

L

Microscope photography interface to M42x0.75 interface adapter (60N-T2 4/3 "1.2x, suitable for Zeiss Axio series microscopes)

Attention: For 4/3 "sensors, it is necessary to select M42x0.75 and 1.2X adapters; for 1.2" sensors, a C interface 1.0X adapter can be selected for optimal field of view

M

Micrometer

106011/TS-M1(X=0.01mm/100Div.)

106012/TS-M2(X,Y=0.01mm/100Div.)

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
