Product manual：

Product Features

· C-interface CMOS USB3.0 camera with Sony Exmor CMOS back illuminated sensor

· Adopting parallel A/D conversion technology to achieve ultra-low noise and low power consumption

· Real time 8/12 bit switching, any ROI size

· Zinc aluminum alloy precision CNC shell

· USB 3.0 interface ensures high transfer rate

· Ultra Fine hardware ISP video streaming engine ensures accurate color reproduction and fast speed

(For a 21 megapixel camera with a speed of 17 frames per second)

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK

E3ISPM45000KPA

IP145000A(2021)

45M/IMX294(C)

1.4“ (18.93x13.00)

2.315x2.315

108mv with 1/30s

0.03mv with 1/30s

8.1@8176x5616

30.0@4088x2808

8.1@7408x5556

33.0@4088x2808

10.4@8176x4320

34.7@4096x2160

62.5@2048x1080

86.5@1344x720

1x1(3:2)

2x2(3:2)

1x1(4:3)

2x2(4:3)

1x1(17:9)

2x2(17:9)

3x3(17:9)

4x4(17:9)

0.1ms~15s

E3ISPM45000KPB

IP145000B(2022)

45M/IMX492(C,RS)

1.4“ (18.93x13.00)

2.315x2.315

108mv with 1/30s

0.03mv with 1/30s

8.1@8176x5616(C)

30.0@4080x2808(M)

8.1@7408x5556(C)

33.0@3696x2778(M)

10.4@8176x4320(C)

34.7@4096x2160(M)

62.5@2048x1080(M)

86.5@1344x720(M)

1x1(3:2)

2x2(3:2)

1x1(4:3)

2x2(4:3)

1x1(17:9)

2x2(17:9)

3x3(17:9)

4x4(17:9)

0.1ms~15s

E3ISPM32000KPA

IP132000A(2021)

32M/IMX294(C)

1.15“ (12.96x12.96)

2.315x2.315

108mv with 1/30s

0.03mv with 1/30s

8.1@5600x5600

30.0@2800x2800

30.0@1400x1400

1x1

2x2

4x4

0.1ms~15s

E3ISPM25000KPA

IP125000A(20220808)

25M/IMX511(C)

1/2.3 “ (5.519x5.519)

1.12x1.12

96.3mv with 1/30s

0.1mv with 1/30s

12@4928x4928

46@2464x2464

100@1648x1648

1x1

2x2

3x3

0.013ms~15s

E3ISPM21000KPA

IP121000A(2020)

21M/IMX269(C)

4/3 “(17.4x13.0)

3.3x3.3

399mv with 1/30s

0.1mv with 1/30s

17@5280x3954

17@3952x3952

56@2640x1976

67@1760x1316

192@584x438

1x1

1x1

2x2

3x3

9x9

0.1ms~15s

E3ISPM20400KPA

IP120400A

20230326

20.4M/IMX541(C,GS)

1.1 “(12.32x12.32)

2.74x2.74

1574mv with 1/30s

0.15mv with 1/30s

17.5@4496x4496

64.4@2240x2240

64.4@1120x1120

1x1

2x2

4x4

0.03ms~15s

E3ISPM20000KPA

IP120000A

20M/IMX183(C,RS)

1 “(13.06x8.76)

2.4x2.4

462mv with 1/30s

0.21mv with 1/30s

15@5440x3648

50@2736x1824

60@1824x1216

1x1

2x2

3x3

0.1ms~15s

E3ISPM20000KPC

IP120000C(2021)

20M/IMX183(C,RS)

1 “(13.06x8.76)

2.4x2.4

462mv with 1/30s

0.21mv with 1/30s

20@5440x3648

48@2736x1824

58@1824x1216

1x1

2x2

3x3

0.1ms~15s

E3ISPM18000KPA

IP118001A

18M/SONY Special(C)

1/2.2 “(5.86x4.46)

1.2x1.2

130mv with 1/30s

0.1mv with 1/30s

17@4880x3720

40@2448x1836

50@1728x1296

1x1

2x2

3x3

0.1ms~15s

E3ISPM15600KPA

IP115600A

15.6M/SONY Special (C)

1.1 “(13.0x13.0)

3.3x3.3

399mv with 1/30s

0.1mv with 1/30s

17@3952x3952

56@1976x1976

67@1316x1316

1x1

2x2

3x3

0.1ms~15s

E3ISPM12400KPA

IP112400A

20230326

12.4M/IMX545(C,GS)

1/1.1 “(11.22x8.22)

2.74x2.74

1337mv with 1/30s

0.15mv with 1/30s

28.2@4096x3000

100.9@2048x1500

100.9@1024x750

1x1

2x2

4x4

0.03ms~15s

E3ISPM12300KPA

IP112300A

12.3M/IMX304(C,GS)

1.1”(14.13x10.35)

3.45x3.45

1146mv with 1/30s

0.1mv with 1/30s

23.4@4096x3000

46.3@2048x1500

1x1

1x1

0.244ms~15s

E3ISPM12000KPA

IP112000A

12M/IMX226(C)

1/1.7“(7.40x5.55)

1.85x1.85

280mv with 1/30s

0.1mv with 1/30s

25@4000x3000

50@2048x1080

1x1

2x2

0.1ms~15s

E3ISPM12000KPB

IP112000B(2022)

12M/IMX577(C)

1/2“(6.29x4.71)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

30@4056x3040

60@2028x1520

120@1014x760

1x1

2x2

4x4

0.1ms~5s

E3ISPM12000KPC

IP112000C(20230717)

12M/IMX676(C)

1/1.6“(7.07x7.07)

2.0x2.0

3637mv with 12 bit

converted value(HCG)

0.15mv with 1/30s

27@3536x3536

60@1768x1768

1x1

2x2

0.013ms~15s

E3ISPM09000KPA

IP109000A

9.0M/IMX305(C,GS)

1“ (14.13x7.45)

3.45x3.45

1146mv with 1/30s

0.15mv with 1/30s

34@4096x2160

60@2048x1080

1x1

1x1

0.1ms~15s

E3ISPM09000KPB

IP109000B

9.0M/IMX533(C)

1“ (11.31x11.28)

3.76x3.76

535mv with 1/30s

0.04mv with 1/30s

40@3008x3000

123@1488x1500

186@992x998

1x1

2x2

3x3

0.1ms~15s

E3ISPM08300KPA

IP108300A

8.3M/IMX274(C)

1/2.5”(6.22x3.50)

1.62x1.62

236mv with 1/30s

0.1mv with 1/30s

32@3840x2160

65@1920x1080

1x1

2x2

0.244ms~15s

E3ISPM08300KPB

IP108300B

8.3M/IMX334(C)

1/1.8”(7.68x4.32)

2.0x2.0

505mv with 1/30s

0.1mv with 1/30s

35@3840x2160

60@1920x1080

1x1

2x2

0.02ms~15s

E3ISPM08300KPC

IP108300C

8.3M/IMX485(C)

1/1.2”(11.14x6.26)

2.9x2.9

2188mv with 1/30s

0.15mv with 1/30s

45@3840x2160

70@1920x1080

1x1

2x2

0.02ms~15s

E3ISPM08300KPD

IP108300D(2022)

8.3M/IMX585(C)

1/1.2”(11.14x6.26)

2.9x2.9

5970(mV/lx/s)

0.13mv with 1/30s

45@3840x2160

70@1920x1080

1x1

2x2

0.02ms~15s

E3ISPM08300KPE

IP108300E(2022)

8.3M/IMX678(C)

1/1.8”(7.68x4.32)

2.0x2.0

3541(mV/lx/s)

0.15mv with 1/30s

45@3840x2160

70@1920x1080

1x1

2x2

0.02ms~15s

E3ISPM08000KPA

IP108000A

8.0M/IMX294(C)

1.15 “(13.00x13.00)

4.63x4.63

419mv with 1/30s

0.12mv with 1/30s

30@2808x2808(14bit)

139@1392x1392

139@696x696

1x1

2x2

4x4

0.1ms~15s

E3ISPM06300KPA

IP106300A

6.3M/IMX178(C,RS)

1/1.8“ (7.37x4.92)

2.4x2.4

425mv with 1/30s

0.15mv with 1/30s

30@3072 x2048

38@1536x 1024

1x1

2x2

0.1ms~15s

E3ISPM06300KPB

IP106300B

6.3M/IMX178(C,RS)

1/1.8“ (7.37x4.92)

2.4x2.4

425mv with 1/30s

0.15mv with 1/30s

59@3072 x2048

59@1536x 1024

1x1

2x2

0.02ms~15s

E3ISPM05100KPA

IP105100A

20230326

5.1M/IMX547(C,GS)

1/1.8“ (6.71x5.61)

2.74x2.74

1337mv with 1/30s

0.15mv with 1/30s

63@2448x2048

208.4@1224x1024

1x1

2x2

0.03ms~15s

E3ISPM05000KPA

IP105000A

5.0M/IMX264(C, GS)

2/3” (8.45x7.07)

3.45x3.45

1146mv with 1/30s

0.15mv with 1/30s

35@2448x2048

50@1224x1024

1x1

1x1

0.1ms~15s

E3ISPM03100KPA

IP103100A

3.1M/IMX265(C, GS)

1/1.8“ (7.07x5.30)

3.45x3.45

1146mv with 1/30s

0.15mv with 1/30s

53@2048x1536

85@1024x768

1x1

1x1

0.1ms~15s

E3ISPM03100KPB

IP103100B

3.1M/IMX123(C)

1/2.8“ (5.12x3.84)

2.5x2.5

600mv with 1/30s

0.15mv with 1/30s

50@2048x1536

50@1920x1080

1x1

1x1

0.1ms~15s

E3ISPM02100KPA

IP102100A(2021)

2.1M/IMX482(C)

1/1.2”(11.14x6.26)

5.8x5.8

8935mv with 1/30s

0.6mv with 1/30s

96@1920x1080

1x1

14us~15s

E3ISPM02000KPA

IP102000A

2M/IMX385(C)

1/2“ (7.2x4.05)

3.75x3.75

2350mv with 1/30s

0.15mv with 1/30s

125@1920x1080

1x1

0.1ms~15s

E3ISPM01500KPA

IP101500A

1.5M/IMX273(C, GS)

1/2.9“ (4.968x3.726)

3.45x3.45

1146mv with 1/30s

0.15mv with 1/30s

164@1440x1080

320@720x540

1x1

2x2

0.1ms~15s

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

ROI white balance/manual Temp-Tint adjustment

Color restoration technology

Ultra Fine Hardware ISP Video Processing Engine

Capture and Control API

Windows/Linux/macOS/Android Multi platform SDK（native C/C++, C #/VB. NET, Python, Java, DirectShow, Twain, etc.）

Depth of Position

8 Bit / 12 Bit

Recording method

Images and videos

Cooling method*

Natural cooling

Camera working environment

Working temperature (Celsius)

-10 ~ 50

Storage temperature (Celsius)

-20 ~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through the USB 3.0 interface (compatible with USB 2.0)

Software operating environment

Operating system

Microsoft® Windows®XP/ Vista / 7 / 8 /10 /11(32 & 64 bit)

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 3.0 high-speed interface or USB 2.0 interface

Monitor: 17 "or above

CD-ROM

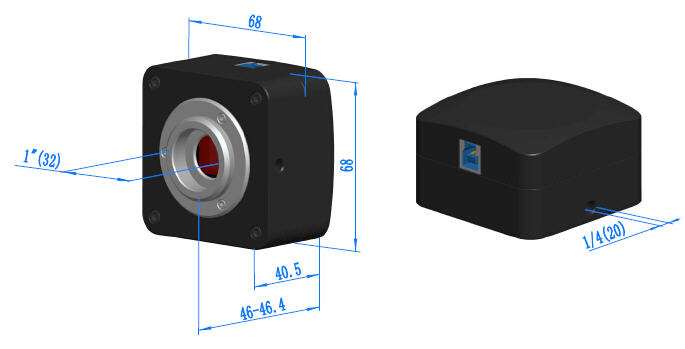

Schematic diagram of the external dimensions of E3ISPM series cameras. The camera housing is made of hard zinc aluminum alloy processed by CNC machining, which is beautiful and elegant. The front end of the camera sensor is equipped with high-quality IR-CUT or dual AR film, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.

Outline dimension diagram of E3ISPM series camera

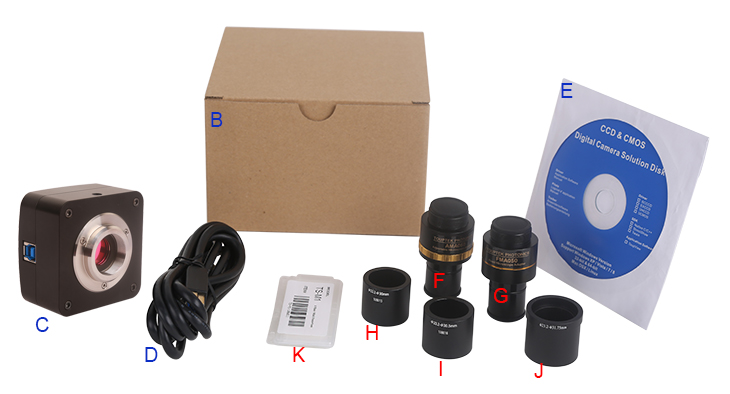

A

Packaging box specifications: L: 52cm W: 32cm H: 33cm (20pcs, 12-17Kg/carton), not shown in the above picture

B

Packaging box specifications: L:15cm W:15cm H:10cm (0.58~0.6Kg/ box)

C

E3ISPM series cameras

D

High speed USB 3.0 A to B gold-plated head data cable/2.0m

E

CD (driver and application software, Ø 12cm)

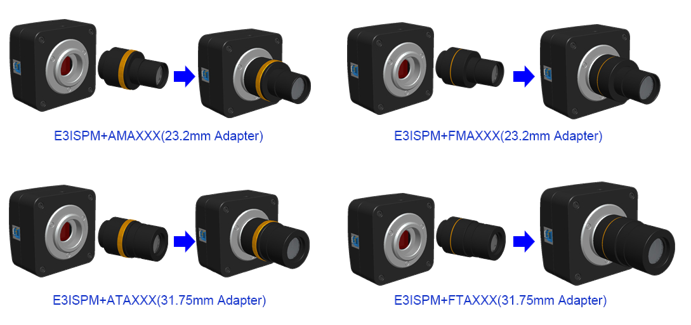

Optional Accessories

F

Adjustable focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

108004/AMA100

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

108011/ATA100

G

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

108008/FMA100

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108011/FTA037

108012/FTA050

108013/FTA075

108014/FTA100

Attention: For options F and G, please first confirm your camera model (C interface, microscope camera or telescope camera),

Engineers from Goptica Optics will assist you in selecting the appropriate microscope or telescope adapter based on your application;

H

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

I

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube

K

Micrometer

106011/TS-M1(X=0.01mm/100Div.)

106012/TS-M2(X,Y=0.01mm/100Div.)

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

C-interface camera

Machine vision; Learning imaging;

Semiconductor equipment; Testing instruments;

Document scanner; 2D code scanner;

Web camera or video surveillance;

micro imaging

Microscope electronic eyepiece

Telescope electronic eyepiece
