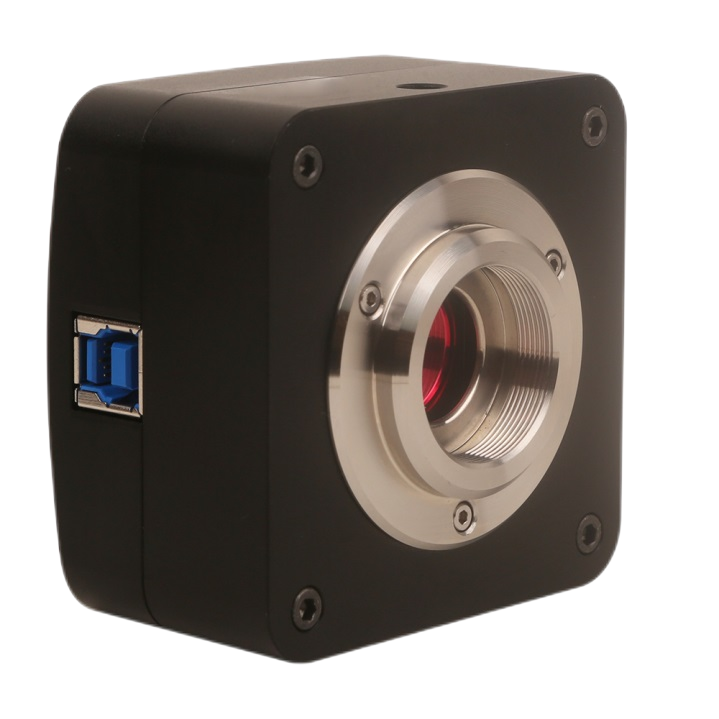

Product manual：

Product Features

· C-interface CMOS camera using Aptina/Panasonic CMOS sensor

· USB 3.0 interface ensures high transfer rate

· Built in hardware ISP Ultra Fine color engine ensures accurate color reproduction

· Low computer CPU usage and ultra-high frame rate

· Provide advanced video and image processing application software Toup View/ToupLite with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK

· Aluminum alloy CNC precision machining oxidation shell

U3ISPM18000KPA

IP118000A

18M/AR1820(C)

1/2.3"(6.14x4.61)

1.25x1.25

0.62 V/lux-sec

65.8dB

36.3

13.1@4912x3684

34.3@2456x1842

54.4@1228x922

1x1

2x2

4x4

0.1ms~2s

U3ISPM16000KPA

IP116000A

16M/MN34120(C)

1/2.33“(6.18x4.67)

1.335x1.335

R: 2453LSB

Gr: 2444LSB

Gb: 1054LSB

B: 996LSB

16@4632x3488

30@2320x1740

27@1536x1160

1x1

2x2

3x3

0.2ms~2s

U3ISPM16000KPB

IP116000B

16M/MN34230(C)

4/3“(17.60x13.30)

3.8x3.8

R: 1315LSB

Gr: 2413LSB

Gb: 2413LSB

B: 1042LSB

(Gain = 0dB)

22@4640x3506

30@3360x2526

43@2304x1750

49@1536x1168

1x1

2x2

3x3

0.2ms~15s

U3ISPM20000KPA

IP120000A

20231018

20M/AR2020(C)

1/1.8“(7.17x5.38)

1.4x1.4

8.4 ke−/lux.sec

20@5120x3840

45@2560x1920

1x1

2x2

0.2ms~15s

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

ROI white balance/manual Temp-Tint adjustment

Color restoration technology

Hardware ISP Ultra Fine Color Processing Engine

Capture and Control API

Windows/Linux/macOS/Android Multi Platform SDK

（Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain etc.）

Depth of Position

8 Bit / 12 Bit

Recording method

Images and videos

Cooling method*

Natural cooling

Camera working environment

Camera working environment

-10 ~ 50

Working temperature (Celsius)

-20 ~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through a USB interface

Software operating environment

Operating system

Microsoft® Windows®XP/ Vista / 7 / 8 /10 /11(32 & 64 bit)

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 3.0 high-speed interface

Monitor: 17 "or above

CD-ROM

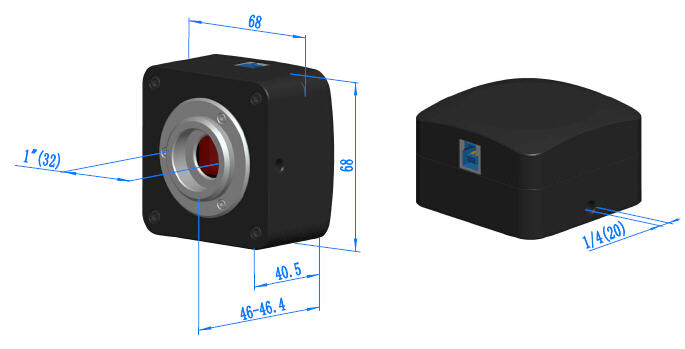

Schematic diagram of the external dimensions of U3ISPM series cameras. The camera housing is made of hard aluminum alloy that has been CNC precision machined and oxidized, giving it a beautiful and elegant appearance. The front end of the camera sensor is equipped with high-quality IR-CUT, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.

Schematic diagram of external dimensions of U3ISPM series camera

A

Packaging box specifications: L: 52cm W: 32cm H: 33cm (16pcs, 12-17Kg/carton), not shown in the above picture

B

Packaging box specifications：L:15cm W:15cm H:10cm (0.67~0.7Kg/ box)

C

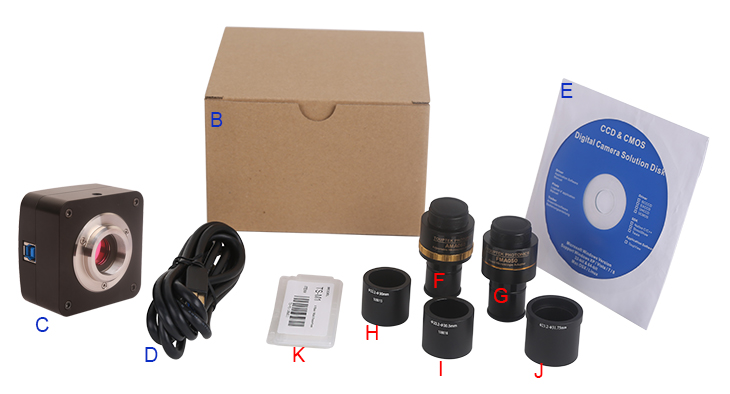

One U3ISPM series camera

D

High speed USB 3.0 A to B gold-plated head data cable/2.0m

E

CD (driver and application software, Ø 12cm)

Optional Accessories

F

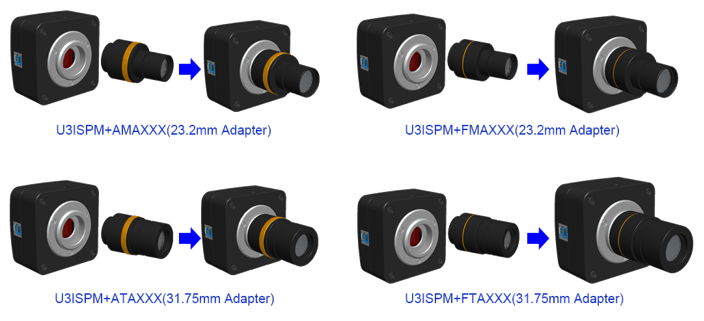

Adjustable focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

G

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108011/FTA037

108012/FTA050

108013/FTA075

Attention: For options F and G, please first confirm your camera model (C interface, microscope camera or telescope camera),

Engineers from Goptica Optics will assist you in selecting the appropriate microscope or telescope adapter based on your application;

H

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

I

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

J

108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube

K

Micrometer

106011/TS-M1(X=0.01mm/100Div.)；

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

C-interface camera

Machine vision; Medical imaging;

Semiconductor equipment; Testing instruments;

Document scanner; 2D code scanner;

Web camera or video surveillance;

Microscopic imaging;

Microscope electronic eyepiece

Telescope electronic eyepiece
