Product manual：

Product Features

· C-interface CMOS camera using Aptina CMOS sensor

· Resolution spans from 1.3M to 16M and other types

· USB 2.0 interface ensures high transfer rate

· Ultra Fine color engine ensures precise color reproduction

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK

· Cache has been added to the periphery of the sensor to achieve USB 2.0 stability and high-speed transmission

· Computers compatible with both new and old CPU chips

· Its CNC aluminum alloy shape is exactly the same as UCMOS

UP901600A

16M/MN34120(C)

1/2.33“(6.18x4.66)

1.335x1.335

R: 2453LSB

Gr: 2444LSB

Gb: 1054LSB

B: 996LSB

2@4632x3488

8@2320x1740

11@1536x1160

1x1

2x2

3x3

0.2ms~2000ms

UA1200CA

UP901200A(2022)

12M/IMX577(C)

1/2.1“ (5.95x4.71)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

3@3840x3040

11@1920x1516

47@960x758

1x1

2x2

4x4

0.4ms~2000ms

UA1000CA

UP901000A(2022)

10M/IMX577(C)

1/2.3“ (5.56x4.26)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

3.3@3584x2748

12@1792x1374

53@896x684

1x1

2x2

4x4

0.4ms~2000ms

UA630CA

UP900630A(2023)

6.3M/IMX178 (C)

1/1.8“ (7.37x4.92)

2.4x2.4

425mv with 1/30s

0.15mv with 1/30s

5fps@3072×2048

20fps@1536×1024

1x1

2x2

0.244ms~15000ms

UA630MA

UM900630A(2023)

6.3M/IMX178 (M)

1/1.8“ (7.37x4.92)

2.4x2.4

760mv with 1/30s

0.15mv with 1/30s

5fps@3072×2048

20fps@1536×1024

1x1

2x2

0.244ms~15000ms

UA510CA

5.1M/AR0521(C)

1/2.5“ (5.70x4.28)

2.2x2.2

18.8ke-/lux

73dB

40dB

7.0@2592x1944

27.7@1296x972

100.5@648x486

1x1

2x2

4x4

0.2ms~2000ms

UA410CA

UP900410A(2023)

4.1M/IMX347(C)

1/1.8“ (7.795x4.408)

2.9x2.9

2376mv with 1/30s

0.15mv with 1/30s

8.5@2688x1536

11.5@2048x1536

15@1536x1536

34@1344x768

1x1

1x1

1x1

1x1

0.1ms~2000ms

UA410CB

UP900410AB(20230725)

4.1M/IMX664(C)

1/1.8“ (7.795x4.408)

2.9x2.9

5970mv with HCG mode

0.13mv with 1/30s

8.5@2688x1520

34@1344x760

1x1

2x2

0.1ms~2000ms

UA310CB

UP900310B(2022)

3.1M/IMX123(C)

1/2.8“ (5.12x3.84)

2.5x2.5

600mv with 1/30s

0.15mv with 1/30s

11.5@2048x1536

29.5@1024x768

1x1

2x2

0.2ms~2000ms

UA130CA

UP900130A

1.23M/SC1235(C)

1/3“ (4.80x3.60)

3.75x3.75

4.5V/lux-sec

74dB

38dB

25@1280x960

25@1280x720

1x1

1x1

0.1ms~2000ms

UA1000CA(New)

UP901000A

10M/MT9J003(C)

1/2.3“ (5.98x4.59)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

3.3@3584x2748

11@1792x1374

38@896x684

1x1

2x2

4x4

0.4ms~2000ms

UA510CA(New)

UP900510A

5.1M/MT9P006(C)

1/2.5“ (5.70x4.28)

2.2x2.2

0.53 V/lux-sec

66.5dB

40.5dB

7@2592x1944

27@1280x960

90@640x480

1x1

2x2

4x4

0.294ms~2000ms

UA310CA(New)

UP900310A

3.1M/MT9T001(C)

1/2“ (6.55x4.92)

3.2x3.2

1.0 V/lux-sec

61dB

43dB

12@2048x1536

32@1024x768

45@680x510

1x1

2x2

3x3

0.244ms~2000ms

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

ROI white balance/manual Temp-Tint adjustment

Color restoration technology

Ultra-Fine Color Processing Engine

Capture and Control API

Windows/Linux/macOS/Android Multi Platform SDK

（Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain etc.）

Depth of Position

8 Bit

USB or WiFi

Recording method

Images and videos

Cooling method*

Natural cooling

Camera working environment

Working temperature (Celsius)

-10 ~ 50

Storage temperature (Celsius)

-20 ~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through a USB interface

Software operating environment

operating system

Microsoft® Windows®XP/Vista / 7 / 8 /10 /11(32 & 64 bit)

OS X (Mac OS X)

Linux

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 2.0 high-speed interface

Monitor: 17 "or above

CD-ROM

Schematic diagram of the external dimensions of UA series cameras. The camera housing is machined from hard CNC aluminum alloy, which is beautiful and elegant. The front end of the camera sensor is equipped with high-quality IR-CUT, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.

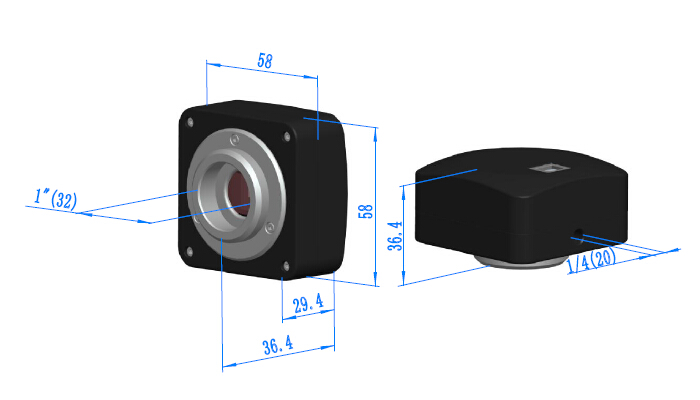

Outline dimension diagram of UA series camera

A

Packaging box specifications: L: 52cm W: 32cm H: 33cm (20pcs, 12-17Kg/carton), not shown in the above picture

B

Packaging box specifications: L: 15cm W: 15cm H: 10cm (0.5~0.55kg/small box)

C

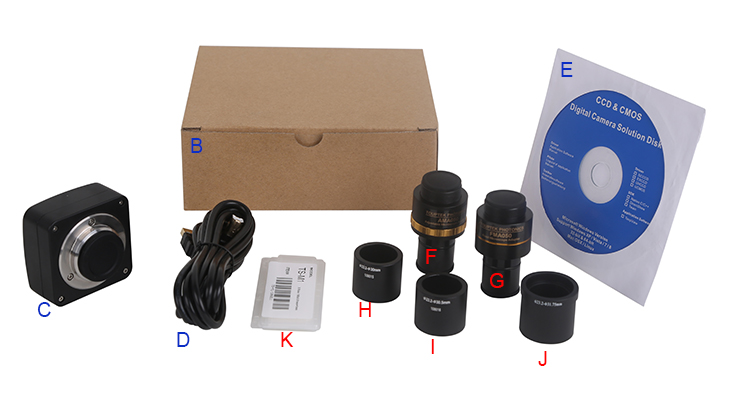

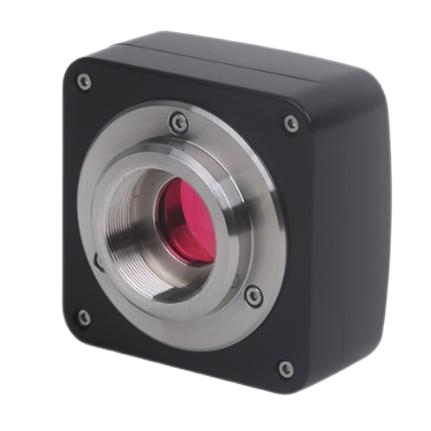

One UA series camera

D

High speed USB 2.0 A to B gold-plated head data cable/2.0m

E

CD (Drivers and Applications, Ø 12cm)

Optional Accessories

F

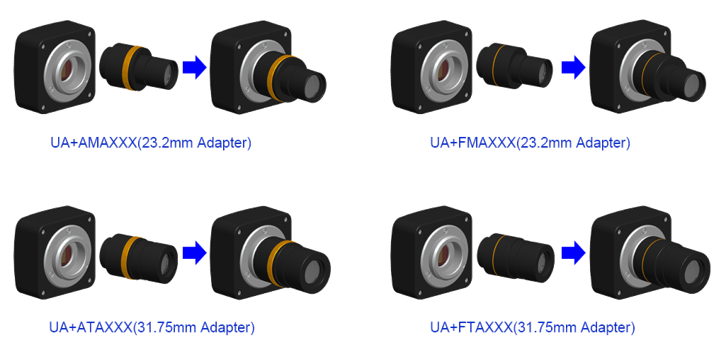

Adjustable focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

G

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108011/FTA037

108012/FTA050

108013/FTA075

Attention: For options F and G, please first confirm your camera model (C interface, microscope camera or telescope camera),

Engineers from Goptica Optics will assist you in selecting the appropriate microscope or telescope adapter based on your application;

H

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

I

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

J

108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube

K

Micrometer

106011/TS-M1(X=0.01mm/100Div.)；

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

C-interface camera

Machine vision; Medical imaging;

Semiconductor equipment; Testing instruments;

Document scanner; 2D code scanner;

Web camera or video surveillance;

Microscopic imaging;

Microscope electronic eyepiece

Telescope electronic eyepiece
