Single Axis Precision Displacement Table
|
The LTS165 series single axis precision displacement table from Goptica Optics adopts a compact and flat design concept, which can achieve high-precision and high stiffness linear motion in the horizontal direction. It can be widely used in fields such as laser cutting, semiconductors, flat panel displays, and automation.
Product manual：  |

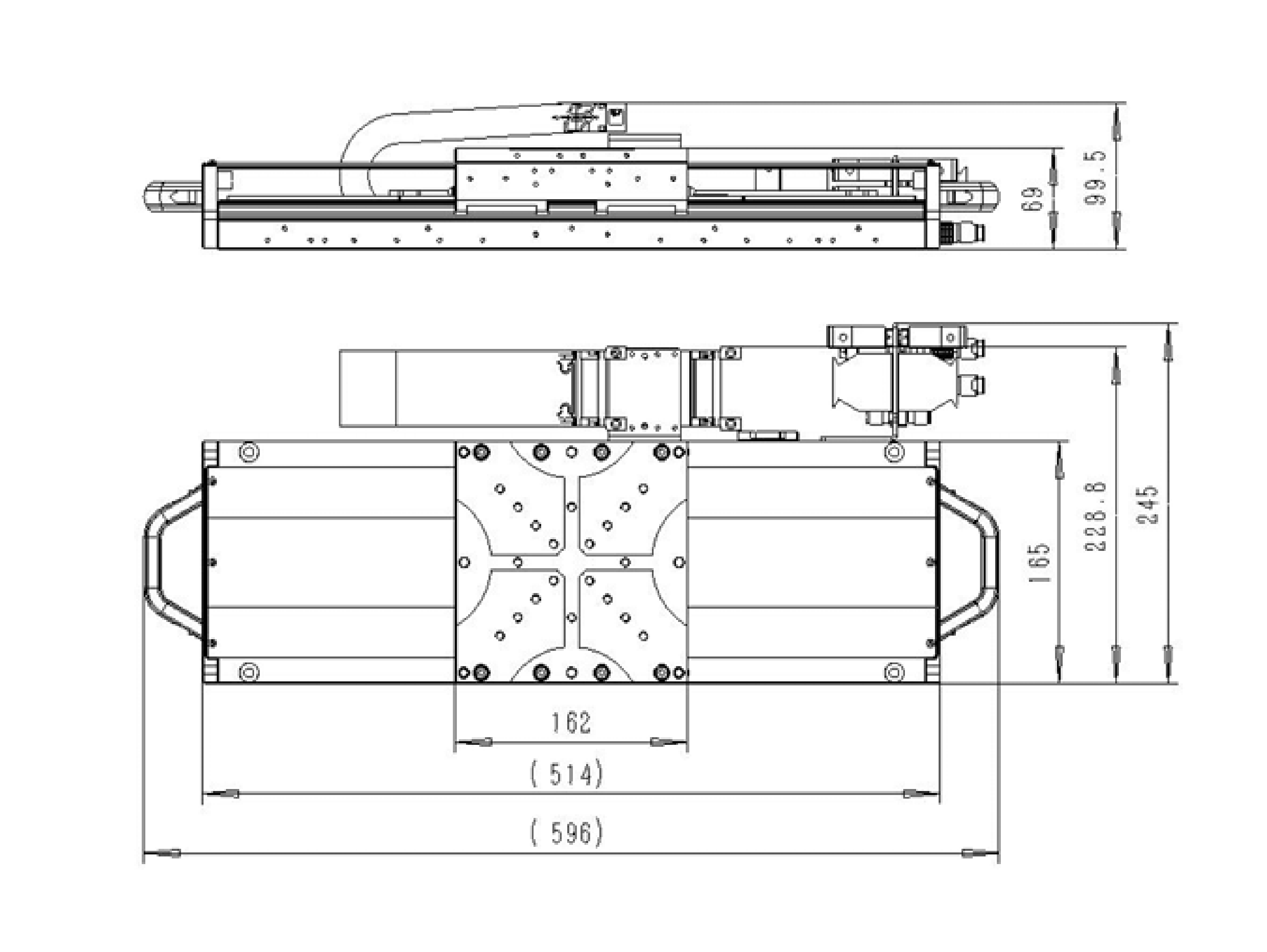

| Features： | Mechanical dimension diagram： |
- High dynamic response, non-contact linear motor drive - High precision optical linear encoder feedback - High stiffness, high-precision ball guide design - Excellent positioning accuracy and dynamic performance |
|
Specifications and Parameters
| LT5165-100 | T5165-200 | LT5165-300 | LTS165-400 | LT5165-500 | LT5165-600 |
| 行程/Travel | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm |
| 最大速度/Maximum Speed | 2m/s |
| 最大加速/Maximum Acceleration | 3g |
| 精度/Accuracy | ±1μm | ±1.5μm | ±1.5μm | ±1.5μm | ±2μm | ±2μm |
| 双向重复精度 /Bidirectional Repeatability | ±0.5μm |
| 直线度/Straightness | ±2.5μm | ±4μm | ±6μm | ±8um | ±9μm | ±10μm |
| 俯仰/Pitch | 29μrad (6 arcsec) | 40μrad (8.2arcsec) | 58rad (12arcsec) | 70μrad (14.4 arcsec) | 80rad (16.5arcsec) | 90μrad (18.6arcsec) |
| 横滚/Roll | 29μrad (6 arcsec) | 40μrad (8.2arcsec) | 58 Mrad (12arcsec) | 70μrad (14.4arcsec) | 80ra (16.5arcsec) | 90 μrad (18.6arcsec) |
| 偏摆/Yaw | 29rad (6 arcsec) | 40rad (8.2arcsec) | 58rad (12arcsec) | 70rad (14.4 arcsec) | 80rad (16.5arcsec) | 0ra (18.6arcsec) |
| 机械特征/Mechanical Specifications |
| 驱动负载（无负载） /Moving Mass (without payload) | 2.9Kg |
| 最大负载/Max Load Capacity | 40g |
| 平台质量/Stage Mass | 9.1Kg | 10.8Kg | 12.5Kg | 14.2Kg | 15.8Kg | 17.5Kg |
| 外观尺寸 (mm)/Dimension(mm) | 396mm x 245mm x 99.5mm | 496mm x 245mm x 99.5mm | 596mm x 245mm x 99.5mm | 696mm x 245mm x 99.5mm | 796mm x 245mm x 99.5mm | 896mm x 245mm x 99.5mm |
| 平台材料/Material | aviation aluminum, black anodized |
Customized information
Single axis precision displacement table optional: In the LTS165 series product series, optional options are configured that can be selected according to the user's actual application. The optional content includes options such as itinerary and encoder.
| Table 1 Size Options |
| -100 | 105mm stroke displacement platform, equipped with linear motor and limit |
| -200 | 205mm stroke displacement platform, equipped with linear motor and limit |
| -300 | 305mm stroke displacement platform, equipped with linear motor and limit |
| -400 | 405mm stroke displacement platform, equipped with linear motor and limit |
| -500 | 505mm stroke displacement platform, equipped with linear motor and limit |
| -600 | 605mm stroke displacement platform, equipped with linear motor and limit |
Table 2 Encoder Options |
| -S1 | Incremental analog optical linear encoder，1Vpp |
| -S2 | Incremental digital optical linear encoder，RS422 |
| -S3 | Absolute optical linear encoder，BISS |
|
