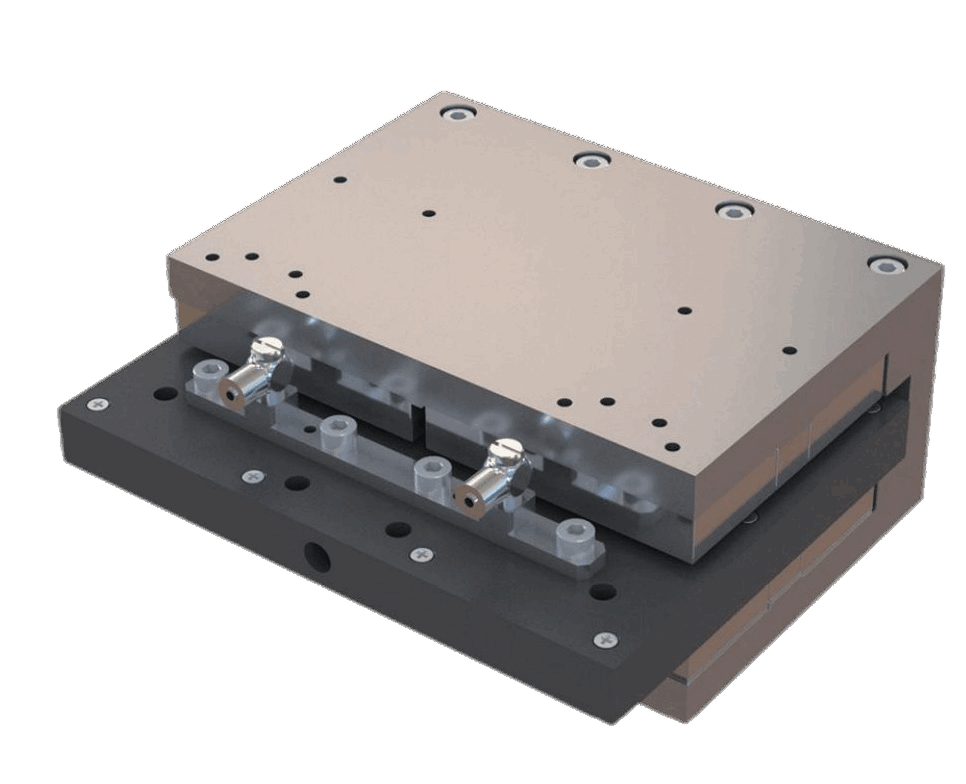

Planar Water-cooled Voice Coil Motor


  • 格物光学5-平面水冷式音圈电机-1.png


    Product manual： 格物PDF.png


    Characteristic：

    - Adopting ultra-thin water-cooled panels, it has high cooling efficiency, reliability, and lifespan

    - Extremely high thrust density, extremely low surface temperature rise, achieving higher continuous and peak forces.

    - Suitable for vacuum environment






  • Specifications and Parameters


    Unit

    WVCM155-12

    WVCM310-12

    行程/Total Stroke

    mm

    ±6

    ±6

    间隙/Clearance of side of Coil

    mm

    3

    3

    连续推力/Continuous Force

    N

    155

    310

    峰值推力/Peak Force

    N

    320

    640

    推力常数/Force Constant

    N/A

    40.6

    81.2

    反电动势常数/Back EMF Constant

    V/(m/s)

    40.6

    81.2

    电阻/Electrical Resistance

    ohms

    4.92

    4.91

    电感/Electrical Inductance

    mH

    4.02

    4

    时间常数/Electrical Time Constant

    ms

    0.82

    0.81

    连续电流/Continuous Current

    A

    3.818

    3.82

    连续功率/Continuous Power

    W

    71.72

    75.61

    峰值电流/Peak Current

    A

    7.88

    7.88

    峰值功率/Peak Power

    W

    322.9

    322.29

    电压/Drive Voltage

    V

    41

    40.89

    电机常数/Motor Constant

    Sqrt(N2/W)

    18.3

    36.65

    最小流量/Minimum Flow

    L/min

    1.2

    1.2

    压降/Pressure Drop

    Bar

    1.5

    1.5

    线圈重量/Weight of Coil Assembly

    g

    2370

    2770

    磁钢重量/Weight of Field Assembly

    g

    5608

    11770
