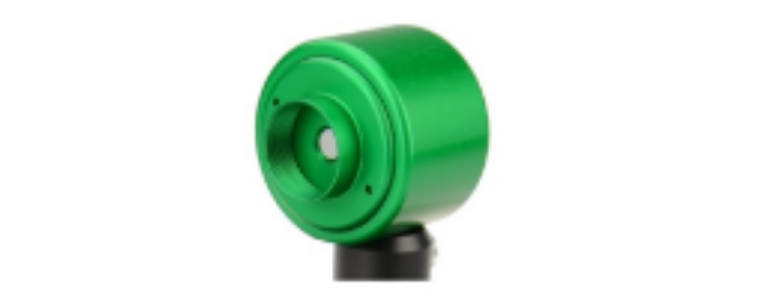

The Polymer Integrating Spheres P10

The Polymer integrating Sphereis a very small 10mm integrating sphere that is designed for lowest attenuation of a light source while still exploiting the advantages of an integrating sphere. It is also machined from solid material – not coated to allow perfect measuring of laser power in the visible to NIR. Our polymer integrating spheres are machined from solid material – not coated. The robust devices are perfect for measuring laser power in the visible to NIR. We offer a wide range of sizes from 10mm to 100mm. The smaller sizes are compatible with our OPM150 series of power meters. Just plug it in to your USB port and start measuring!

Options

-Fibre ports: SMA and FC

-Photodiodes: Si, Ge, InGaAs, VIS-enhanced InGaAs, IR-extended InGaAs

-Sphere inner diameters: 10mm, 20mm, 50mm, 100mm

Specifications

-Wavelength range: 250-2500nm

-Positional dependance: <1% (full aperture)

-Angular dependance: <2% (±30°)

-Power and energy density: 1kW/cm²; 2J/cm²

Model Selection Guide

Product Image	Order Code	ΦInput	Wavelength	Power
	OPM150P10UVS	3.5	250nm – 1100nm	up to 250mW
	OPM150P10G		800nm – 1550nm	up to 250mW
	OPM150P10VIGA		400nm – 1600nm	up to 250mW
	OPM150P10x2.0IGA		800nm – 2000nm	up to 250mW
	OPM150P10x2.2IGA		1000nm – 2200nm	up to 250mW

The high reflectivity and lambertian diffusivity of the polymer we use ensures wide band efficiency over the full range of 250-2500nm. These integrating spheres can be used for optical power measurement as well as beam homogenization for accurate spectral analysis. The 100mm sphere exhibits a homogeneity of better than 1% at the 25mm port when illuminated through the side (fibre) ports. The 10mm and 20mm spheres feature an integrated photodiode (choice of UV-Silicon, VIS-enhanced InGaAs or Germanium) for optical power measurement, as well as an SMA fibre port for auxiliary functions such as spectral analysis. Both outputs are located on the back side of the device. Both of these spheres are calibrated and are compatible with our OPM150 series of optical power meter.

Product Brochure:

The Polymer Integrating Spheres P20

The integrating Sphere is designed for lowest attenuation of a light source while still exploiting the advantages of an integrating sphere. It is also machined from solid material – not coated to allow perfect measuring of laser power in the visible to NIR. Our polymer integrating spheres are machined from solid material – not coated. The robust devices are perfect for measuring laser power in the visible to NIR. We offer a wide range of sizes from 10mm to 100mm. The smaller sizes are compatible with our OPM150 series of power meters. Just plug it in to your USB port and start measuring!

Options

Fibre ports: SMA and FC
Photodiodes: Si, Ge, InGaAs, VIS-enhanced InGaAs, IR-extended InGaAs
Sphere inner diameters: 10mm, 20mm, 50mm, 100mm

Specifications

-Wavelength range: 250-2500nm

-Positional dependance: <1% (full aperture)

-Angular dependance: <2% (±30°)

-Power and energy density: 1kW/cm²; 2J/cm²

Model Selection Guide

Product Image	Order Code	ΦInput	Wavelength	Power
	OPM150P20UVS	7	250nm – 1100nm	up to 1W
	OPM150P20G		800nm – 1550nm	up to 1W
	OPM150P20VIGA		400nm – 1600nm	up to 1W
	OPM150P20x2.0IGA		800nm – 2000nm	up to 1W
	OPM150P20x2.2IGA		1000nm – 2200nm	up to 1W

Product Brochure:

	Polymer				Gold
Model	P10	P20	SP20	SP50/100	G25	G65	G100L
Inner Diameter	10mm	20mm	20mm	50mm/100mm	25mm	65mm	100mm
Input Port Diameter	3,5mm	7mm
Max Power handling	<50mW	200mW	500mW-20W	5W-100W	up to 100W (CW)	up to 400W (CW)	up to 5kW (CW)
Wavelength range	200-2500nm	200-2500nm	200-2500nm	200-2500nm	650nm – 20µm	650nm – 20µm	650nm – 20µm

Choose the Power Sensor based on wavelength Click here

SIMTRUM offers two types of sensor head Free beam and Fiber coupled, Wtih various diode materials allow measurement from 250nm to 2500nm. Silicon sensor wavelength range covers 250nm -110nm , Gemanium sensor wavelength range covers 800nm-1500nm, InGaAs sensor wavelength range covers 400-2500nm. The calibration file of each head is stored into its connector. Thus, changing wavelength range is as simple as swapping heads.

Optical Density Filter Choice

We offer caliberated attenuation filters which extend the range of free beam heads by up to three orders of magnitude. Power range cover from 1nW to 300mW

For High Power sensing combime sensor with integrating sphere. Click here

We offer integrating sphere which can extend your high power measurement from 2uW to 100W.With a response time tof 100us and sampling rates up to 600S/s, there is much more to see than with a thermopile sensor. And no thermal drift to worry about either!

Match Power Meter Console Click Here

Input	OPM 150	OPM 200	OPM 500
Detector Heads	Free Beam / Fibre Heads	Fibre Heads
USB Port	Yes	No	Yes
Output	Digital & Analogue	Analogue	Digital & Analogue
Power Range	nW - kW	µW - mW	pW - mW
Accuracy	± 4	± 5
Reproducibility	± 1	± 0.5
Linearity	± 0.2

Product Brochure:

Power Meter Console Comparison

Input	OPM 150	OPM 200	OPM 500
Detector Heads	Free Beam / Fibre Heads	Fibre Heads
USB Port	Yes	No	Yes
Output	Digital & Analogue	Analogue	Digital & Analogue
Power Range	nW - kW	µW - mW	pW - mW
Accuracy	± 4	± 5
Reproducibility	± 1	± 0.5
Linearity	± 0.2

The OPM150

is low cost, versatile and small enough to fit into your pocket, it is designed for use with a PC only, thus eliminating the

need for a display making it very economical. It also has a response time of 100µs and sampling rates up to 600S/s

with no thermal drift to worry about and customizable wavelength range.

Characteristics

- Interfaces: USB measurement rate: 30ms to 999s

- Minimum measurable power: 1nW (photodiode)

- Maximum measurable power: 5kW (Integrating sphere)

- Gain control: 5 gain ranges

- Functions: Graph and digital display modes, averaging

Applications

- Laboratory

- Laser Servicing

- OEMs

Input
Max. Current		12	4	mA
Output
Connectors		DB9 (detector head) and USB	DB9 (detector head) and USB
Bandwidth		10	100	kHz
Sampling Rate	GUI-Control	30	30	S/s
Sampling Rate	Direct polling	600	600	S/s
Gain Stages		1, 10, 100, 1000, 10000	1, 10, 100, 1000, 10000	V/mA
Accuracy	Detector	± 4	± 4	%
Accuracy	Base Unit	± 1	± 1	%
Reproducibility	Detector	± 1	± 1	%
Linearity	Detector	± 0.2	± 0.2	%
Power supply
Type		USB	USB
Dimensions
	Base module	60 x 81 x 36 mm (W x L x H)	60 x 81 x 36 mm (W x L x H)	mm
	Head	35 x 30 (Φ x L)	35 x 30 (Φ x L)	mm

Product Picture	Product Model	Drawings And Specifications	Operation
Product Picture：	Product Model：OPM150 P10UVS Polymer Integrating Spheres with Detector (10-20mm), 10mm Polymer, Wavelength 800nm - 1550nm, power up to 250mW	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：OPM 150 P10G Polymer Integrating Spheres with Detector (10-20mm), 10mm Polymer, Wavelength 250nm - 1100nm, power up to 250mW	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：OPM150 P10 VIGA Polymer Integrating Spheres with Detector (10-20mm), 10mm Polymer, Wavelength 400nm - 1600nm, power up to 250mW	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：OPM150 P10x2.0IGA Polymer Integrating Spheres with Detector (10-20mm), 10mm Polymer, Wavelength 800nm - 2000nm, power up to 250mW	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：OPM150 P10x2.2IGA Polymer Integrating Spheres with Detector (10-20mm), 10mm Polymer, Wavelength 1000nm - 2200nm, power up to 250mW	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：OPM150P20UVS Polymer Integrating Spheres with Detector (10-20mm), 20mm Polymer, Wavelength 250nm - 1100nm, power up to 1W	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：OPM150P20G Polymer Integrating Spheres with Detector (10-20mm), 20mm Polymer, Wavelength 800nm - 1550nm, power up to 1W	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：OPM150 P20 VIGA Polymer Integrating Spheres with Detector (10-20mm), 20mm Polymer, Wavelength 400nm - 1600nm, power up to 1W	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：OPM150 P20x2.0IGA Polymer Integrating Spheres with Detector (10-20mm), 20mm Polymer, Wavelength 800nm - 2000nm, power up to 1W	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：OPM150 P20x2.2IGA Polymer Integrating Spheres with Detector (10-20mm), 20mm Polymer, Wavelength 1000nm - 2200nm, power up to 1W	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：OPM 150 Power Meter Console 4mA Max Current 4 mA Measurement bandwidth: 100kHz , Interfaces: USB, Compatible with full range power meter sensor	Drawings And Specifications：	Operation：inquiry
Product Picture：	Product Model：OPM 150 Power Meter Console 12mA Max Current 12 mA Measurement bandwidth: 10kHz , Interfaces: USB, Compatible with full range power meter sensor	Drawings And Specifications：	Operation：inquiry
