25/65/100mm Gold Coated Integrating Spheres
Product Brochure:
| Gold Integrating Sphere |
| Model | G25 | G65 | G100L |
| Inner Diameter | 25mm | 65mm | 100mm |
| Input Port Diameter | Customized | Customized | Customized |
| Max Power handling | up to 100W (CW) | up to 400W (CW) | up to 5kW (CW) |
| Wavelength range | 650nm – 20µm | 650nm – 20µm | 650nm – 20µm |
| High power measurements are often performed using thermopile detectors. Thermopiles however, have the disadvantage of reacting very slowly typical rise times lead to measurement periods of 1 second at best. The combination of an integrating sphere and a photodiode-based power meter opens the possibility of measuring high power fluctuations on a µs time scale. This can be useful for setting up and debugging high-power CW lasers. These spheres may be combined with our power meters via fiber coupling or via a photodiode port. Just plug it into your USB port and start measuring! |
25mm Gold Integrating Sphere
25mm gold integrating spheres are designed for high-power applications in the near to mid-infrared (NIR and MIR). These quality spheres provide exceptional power handling capability with air-cooled and liquid-cooled versions to choose from. These convection-cooled gold spheres are designed for mid-power laser applications in the near to mid-infrared (NIR and MIR). They provide good power handling capability up to 10W (CW). The back plate of the sphere is lapped and coated for mounting to liquid or forced air-cooled cold plates. With a suitable cold plate, the sphere can withstand up to 100W (CW) power.
|  |
Specifications
-Power Handling : up to 10W (CW); up to 100W (CW) with suitable cold plate mounted -Sphere inner diameter: 25mm -Power density: 5000W/cm² -Wavelength range: 650nm – 20µm
|
|
Options
-Standard 3 port design (fibre & photodiode) -SMA fibre port -FC fibre port -Photodiode port (Ge, InGaAs, IR enhanced InGaAs) |
65mm Gold Integrating Sphere

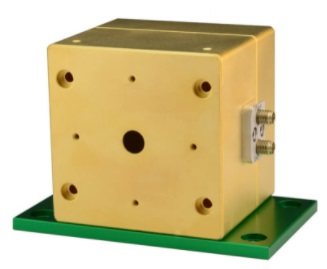

65mm gold integrating spheres are designed for high-power applications in the near to mid-infrared (NIR and MIR). These quality spheres provide exceptional power handling capability with air-cooled and liquid-cooled versions to choose from. These convection-cooled gold spheres are designed for mid-power laser applications in the near to mid-infrared (NIR and MIR). They provide good power handling capability up to 40W (CW). The back plate of the sphere is lapped and coated for mounting to liquid or forced air-cooled cold plates. With a suitable cold plate, the sphere can withstand up to 400W (CW) power. |  |
Specifications
- High power handling: up to 40W (CW); up to 400W (CW) with suitable cold plate mounted -Sphere inner diameter: 65mm -Power density: 5000W/cm² -Wavelength range: 650nm – 20µm
|
|
Options
-Standard 2 port design; 4 ports on request -SMA fibre port (2 or 4)
-FC fibre port (2 or 4)
|

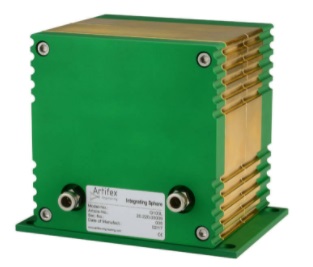

100mm Liquid Cooled Gold Integrating Sphere 100mm gold integrating spheres is designed for high-power laser applications in the near to mid-infrared (NIR and MIR) and it provides power handling capability up to 5kW (CW) and a high-power density of 5kW/cm². These quality spheres provide exceptional power handling capability with air cooled and liquid-cooled versions to choose from. |  |
Specifications
-High power handling: up to 5kW (CW) -Sphere inner diameter: 100mm -Power density: 5000W/cm² -Wavelength range: 650nm – 20µm |
|
Options
-Standard 2 port design; 4 ports on request -SMA fibre port (2 or 4)
-FC fibre port (2 or 4)
|
Product Brochure:
| Polymer | Gold |
| Model | P10 | P20 | SP20 | SP50/100 | G25 | G65 | G100L |
| Inner Diameter | 10mm | 20mm | 20mm | 50mm/100mm | 25mm | 65mm | 100mm |
| Input Port Diameter | 3,5mm | 7mm |
|
|
|
|
|
| Max Power handling | <50mW | 200mW | 500mW-20W | 5W-100W | up to 100W (CW) | up to 400W (CW) | up to 5kW (CW) |
| Wavelength range | 200-2500nm | 200-2500nm | 200-2500nm | 200-2500nm | 650nm – 20µm | 650nm – 20µm | 650nm – 20µm |
Choose the Power Sensor based on wavelength Click here
Goptica offers two types of sensor head Free beam and Fiber coupled, Wtih various diode materials allow measurement from 250nm to 2500nm. Silicon sensor wavelength range covers 250nm -110nm , Gemanium sensor wavelength range covers 800nm-1500nm, InGaAs sensor wavelength range covers 400-2500nm. The calibration file of each head is stored into its connector. Thus, changing wavelength range is as simple as swapping heads.
Optical Density Filter Choice
We offer caliberated attenuation filters which extend the range of free beam heads by up to three orders of magnitude. Power range cover from 1nW to 300mW
For High Power sensing combime sensor with integrating sphere. Click here
We offer integrating sphere which can extend your high power measurement from 2uW to 100W.With a response time tof 100us and sampling rates up to 600S/s, there is much more to see than with a thermopile sensor. And no thermal drift to worry about either!
Match Power Meter Console Click Here
Input | OPM 150 | OPM 200 | OPM 500 |
Detector Heads | Free Beam / Fibre Heads | Fibre Heads |
USB Port | Yes | No | Yes |
Output | Digital & Analogue | Analogue | Digital & Analogue |
Power Range | nW - kW | µW - mW | pW - mW |
Accuracy | ± 4 | ± 5 |
Reproducibility | ± 1 | ± 0.5 |
Linearity | ± 0.2
|
|
Product Picture |
Product Model |
Drawings And Specifications |
Operation |
|
|
Product Picture：
|
Product Model：OPM 150 Power Meter Console 4mA Max Current 4 mA Measurement bandwidth: 100kHz , Interfaces: USB, Compatible with full range power meter sensor |
Drawings And Specifications：
|
Operation：inquiry |
|
Product Picture：
|
Product Model：OPM 150 Power Meter Console 12mA Max Current 12 mA Measurement bandwidth: 10kHz , Interfaces: USB, Compatible with full range power meter sensor |
Drawings And Specifications：
|
Operation：inquiry |
|
Product Picture：
|
Product Model：Gold Integrating Spheres 25mm Gold Integrating Spheres Inner diameter 25mm , Wavelength 650nm - 20um , Power up to 100W (CW) |
Drawings And Specifications：
|
Operation：inquiry |
|
Product Picture：
|
Product Model：Gold Integrating Spheres 65mm Gold Integrating Spheres Inner diameter 65mm , Wavelength 650nm - 20um , Power up to 400W (CW) |
Drawings And Specifications：
|
Operation：inquiry |
|
Product Picture：
|
Product Model：Gold Integrating Spheres 100mm Gold Integrating Spheres Inner diameter 100mm , Wavelength 650nm - 20um , Power up to 5kW (CW) |
Drawings And Specifications：
|
Operation：inquiry |
