Product manual：

Product Features

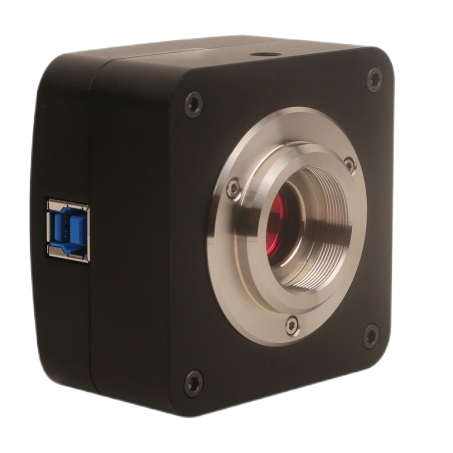

· C-interface CMOS USB3.0 camera with Sony Exmor CMOS back illuminated sensor

· Adopting column parallel A/D conversion technology to achieve ultra-low noise and low power consumption

· Real time 8/12 bit switching, any ROI size

· Zinc aluminum alloy precision CNC shell

· USB 3.0 interface ensures high transfer rate

· Ultra Fine color engine ensures precise color reproduction

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK

E3CMOS45000KMA

EM145000A

45M/IMX492(M,RS)

4/3“ (19.11x13.00)

2.315x2.315

176mv with 1/30s

0.03mv with 1/30s

8.1@8176x5616

30.0@4080x2808

8.1@7408x5556

33.0@3696x2778

10.4@8176x4320

34.7@4096x2160

62.5@2048x1080

86.5@1360x720

8 Bit / 12 Bit

1x1(3:2)

2x2(3:2)

1x1(4:3)

2x2(4:3)

1x1(17:9)

2x2(17:9)

3x3(17:9)

4x4(17:9)

0.1ms~15s

E3CMOS20400KMA

EM120400A

20230326

20.4M/IMX541(M,GS)

1.1 “(12.32x12.32)

2.315x2.315

2649mv with 1/30s

0.15mv with 1/30s

17.5@4496x4496

64.4@2240x2240

64.4@1120x1120

1x1

2x2

4x4

0.03ms~15s

E3CMOS20000KMA

EM120000A(New)

20M/IMX183(M,RS)

1 “(13.06x8.76)

2.4x2.4

776mv with 1/30s

0.21mv with 1/30s

17.5@5440x3648

40@4080x2160

48@2736x1824

60@1824x1216

8 Bit / 12 Bit

1x1

1x1

2x2

3x3

0.1ms~60s

E3CMOS20000KPB

EP120000B(New)

20M/IMX147(C)

1/2.1 “(6.24x4.67)

1.2x1.2

130mv with 1/30s

0.1mv with 1/30s

5.2@5200x3888

15@2592x1944

30@1728x1296

8 Bit / 12 Bit

1x1

2x2

3x3

0.1ms~15s

E3CMOS12400KMA

EM112400A

20230326

12.4M/IMX545(M,GS)

1/1.1 “(11.22x8.22)

2.74x2.74

2252mv with 1/30s

0.15mv with 1/30s

28.2@4096x3000

100.9@2048x1500

100.9@1024x750

1x1

1x1

0.244ms~15s

E3CMOS12000KPA

EP112000A

12M/IMX226(C)

1/1.7“(7.40x5.55)

1.85x1.85

280mv with 1/30s

0.1mv with 1/30s

7.1@4000x3000

30@2048x1080

8 Bit / 12 Bit

1x1

2x2

0.244ms~2000ms

E3CMOS06300KPA

EP106300A

6.3M/IMX178(C,RS)

1/1.8“ (7.37x4.92)

2.4x2.4

425mv with 1/30s

0.15mv with 1/30s

15@3072 x2048

26@1536x 1024

8 Bit / 14 Bit

1x1

2x2

0.244ms~2000ms

E3CMOS06300KMA

EM106300A

6.3M/IMX178(M,RS)

1/1.8“ (7.37x4.92)

2.4x2.4

760mv with 1/30s

0.15mv with 1/30s

30@3072 x2048

50@1536x 1024

8 Bit / 14 Bit

1x1

2x2

0.244ms~2000ms

E3CMOS05100KMA

EM105100A

20230326

5.1M/IMX547(M,GS)

1/1.8“ (6.71x5.61)

2.74x2.74

2252mv with 1/30s

0.15mv with 1/30s

63@2448x2048

208.4@1224x1024

1x1

2x2

0.03ms~15s

E3CMOS05000KMA

EM105000A

5.0M/IMX264(M, GS)

2/3” (8.45x7.07)

3.45x3.45

1830mv with 1/30s

0.15mv with 1/30s

35@2448x2048

60@1224x1024

8 Bit / 12 Bit

1x1

2x2

0.1ms~60s

E3CMOS03100KPB

EP103100B

3.1M/IMX123(C)

1/2.8“ (5.12x3.84)

2.5x2.5

600mv with 1/30s

0.15mv with 1/30s

25@2048x1536

30@1920x1080

8 Bit / 14 Bit

1x1

0.244ms~2000ms

E3CMOS03100KMC

EM103100C

3.1M/IMX265(M, GS)

1/1.8“ (7.07x5.30)

3.45x3.45

1146mv with 1/30s

0.15mv with 1/30s

53@2048x1536

85@1024x768

8 Bit / 12 Bit

1x1

1x1

0.1ms~15s

E3CMOS02300KPA

EP102300A

2.3M/IMX185(C)

1/1.9“ (7.20x4.50)

3.75x3.75

1120mv with 1/30s

0.15mv with 1/30s

38@1920x1200

66@960x600

8 Bit / 12 Bit

1x1

2x2

0.244ms ~2000ms

E3CMOS02300KPB

EP102300B

2.3M/IMX249(C, GS )

1/1.2“ (11.25x7.03)

5.86x5.86

1016mv with 1/30s

0.15mv with 1/30s

30@1920x1200

8 Bit / 12 Bit

1x1

0.244ms~2000ms

E3CMOS02300KMC

EM102300C

2.3M/IMX174(M, GS)

1/1.2” (11.25x7.03)

5.86x5.86

1016mv with 1/30s

0.15mv with 1/30s

120@1920x1200

8 Bit / 12 Bit

1x1

0.244ms~2000ms

E3CMOS01500KMA

EM101500A

1.5M/IMX273(M, GS)

1/2.9“ (4.968x3.726)

3.45x3.45

915mv with 1/30s(F8.0)

0.15mv with 1/30s

228@1440x1080

530@720x540

8 Bit / 12 Bit

1x1

2x2

0.1ms~60s

E3CMOS01200KPA

EP101200A

1.2M/IMX224(C)

1/3“(4.80x3.60)

3.75x3.75

2040mv with 1/30s

0.15mv with 1/30s

60@1280x960

120@640x480

8 Bit / 12 Bit

1x1

2x2

0.105ms~15s

E3CMOS00400KPA

0.4M/IMX287(C, GS)

1/2.9”(4.97x3.73)

6.9x6.9

4584mv with 1/30s

0.15mv with 1/30s

520@720x540

8 Bit / 12 Bit

1x1

0.244ms~15s

E3CMOS00400KMA

0.4M/IMX287(M, GS)

1/2.9”(4.97x3.73)

6.9x6.9

7469mv with 1/30s

0.15mv with 1/30s

520@720x540

8 Bit / 12 Bit

1x1

0.244ms~15s

E3CMOS20000KPA

EP120000A(Suspended)

20M/IMX183(C,RS)

1 “(13.06x8.76)

2.4 x2.4

462mv with 1/30s

0.21mv with 1/30s

5.5@5440x3648

16@2736x1824

21@1824x1216

8 Bit / 12 Bit

1x1

2x2

3x3

0.1ms~15s

E3CMOS05000KPA

EP105000A(Suspended)

5.0M/IMX264(C, GS)

2/3” (8.45x7.07)

3.45x3.45

1146mv with 1/30s

0.15mv with 1/30s

15@2448x2048

51@1224x1024

8 Bit / 12 Bit

1x1

1x1

0.1ms~60s

E3CMOS03100KPA

EP103100A(Suspended)

3.1M/IMX036(C)

1/2.8“ ((5.12x3.84)

2.5x2.5

200mv with 1/30s

0.5mv with 1/30s

28@2048x1536

28@1024x768

8 Bit / 12 Bit

1x1

2x2

0.244ms ~2000ms

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

ROI white balance/manual Temp-Tint adjustment

Color restoration technology

Ultra-Fine Color Processing Engine

Capture and Control API

Windows/Linux/macOS/Android Multi platform SDK（native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain etc.）

Depth of Position

8 Bit / 12 Bit

Recording method

Images and videos

Cooling method*

Natural cooling

Camera working environment

Working temperature (Celsius)

-10 ~ 50

Storage temperature (Celsius)

-20 ~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through a USB interface

Software operating environment

Operating system

Microsoft® Windows®XP/ Vista / 7 / 8 /10 /11(32 & 64 bit)

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 3.0 high-speed interface or USB 2.0 interface

Monitor: 17 "or above

CD-ROM

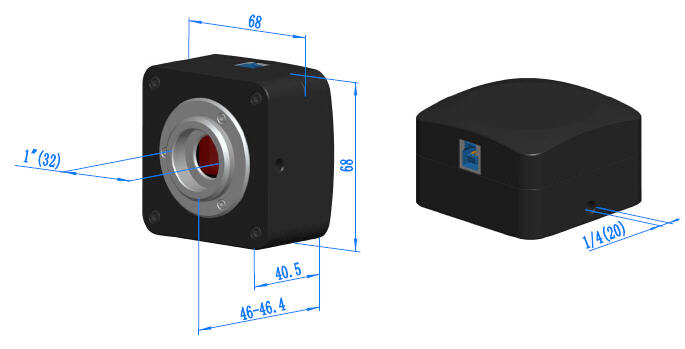

Schematic diagram of the external dimensions of E3CMOS series cameras. The camera housing is made of hard zinc aluminum alloy processed by CNC machining, which is beautiful and elegant. The front end of the camera sensor is equipped with high-quality IR-CUT or dual AR film, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.

Outline dimension diagram of E3CMOS series camera

A

Packaging box specifications: L: 52cm W: 32cm H: 33cm (20pcs, 12-17Kg/carton), not shown in the above picture

B

Packaging box specifications：L:15cm W:15cm H:10cm（0.58~0.6Kg/ box）

C

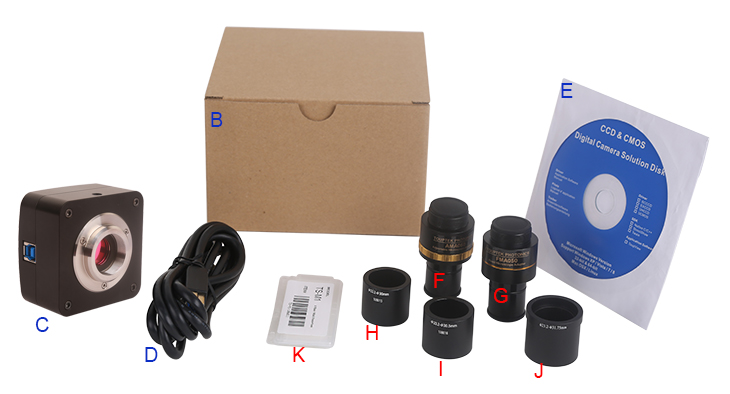

One E3CMOS series camera

D

High speed USB 3.0 A to B gold-plated head data cable/2.0m

E

CD (driver and application software, Ø 12cm)

Optional Accessories

F

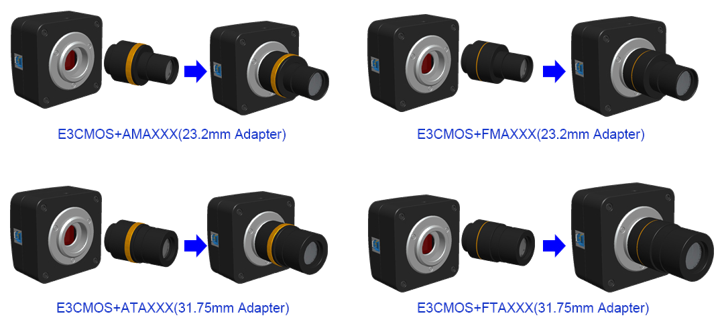

Adjustable focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

108004/AMA100

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

108011/ATA100

G

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

108008/FMA100

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108011/FTA037

108012/FTA050

108013/FTA075

108014/FTA100

Attention: For options F and G, please first confirm your camera model (C interface, microscope camera or telescope camera),

Engineers from Goptica Optics will assist you in selecting the appropriate microscope or telescope adapter based on your application;

H

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

I

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

J

108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube

K

Micrometer

106011/TS-M1(X=0.01mm/100Div.)

106012/TS-M2(X,Y=0.01mm/100Div.)

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

C-interface camera

Machine vision; Medical imaging;

Semiconductor equipment; Testing instruments;

Document scanner; 2D code scanner;

Web camera or video surveillance;

Microscopic imaging;

Microscope electronic eyepiece

Telescope electronic eyepiece
